A Shelby tube sampler is a thin-walled steel tube pushed into the ground to extract a soil sample with minimal disturbance. In Houston, where expansive clays and alluvial deposits dominate the subsurface, this method is essential for obtaining representative specimens. The tube is carefully advanced using a drill rig, then sealed and transported to the lab. This process preserves the natural moisture content and structure of the clay, which is critical for accurate laboratory testing. Without this care, the soil's true behavior under load cannot be assessed, especially in areas prone to swelling and shrinkage. For many projects, we combine Shelby tube sampling with calicatas exploratorias to correlate visual field observations with lab results on undisturbed specimens.
Shelby tube samples preserve the natural structure and moisture content of Houston's expansive clays, enabling accurate consolidation and strength testing for foundation design.
Methodology and scope
A common mistake contractors make in Houston is relying solely on disturbed samples from auger cuttings for foundation design. Those samples do not reflect the true density or shear strength of the clay. Undisturbed sampling with a Shelby tube captures intact material, allowing us to measure consolidation, unconfined compressive strength, and sensitivity. The process follows ASTM D1587, which specifies a tube area ratio below 10% to limit disturbance. The sample is trimmed and extruded in the lab for triaxial or direct shear tests. This data directly impacts the design of drilled shafts and grade beams. When dealing with the Beaumont Clay formation, we also run ensayo-triaxial on Shelby tube specimens to evaluate undrained shear strength under realistic confining pressures.

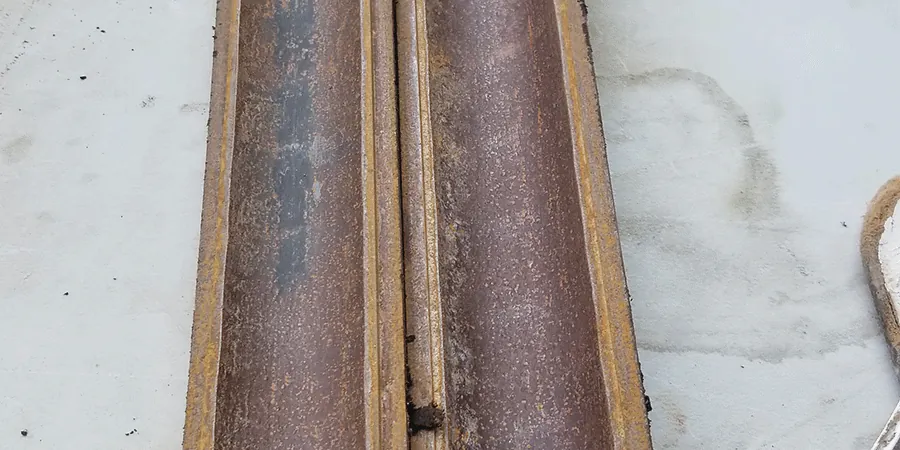

Technical reference image — Houston
Local considerations
Houston's rapid growth since the 1960s has pushed development onto floodplains and former marshlands around Buffalo Bayou and the San Jacinto River. These soft, compressible soils undergo significant settlement when loaded. Undisturbed sampling is the only reliable way to measure pre-consolidation pressure and compression index in these layers. Without it, foundation designs underestimate long-term settlement, leading to cracked slabs, tilted structures, and costly repairs. The city's expansive clay cycles between wet and dry seasons, further complicating behavior. Using Shelby tube data we can predict how the soil will respond to both structural loads and environmental changes.
Our crews use hydraulic-push drill rigs to advance thin-walled tubes with minimal disturbance. Each tube is immediately sealed, labeled, and stored in moisture-controlled containers for transport.
02
Consolidation Testing (Oedometer)
On undisturbed specimens we run one-dimensional consolidation tests per ASTM D2435 to determine pre-consolidation pressure, compression index, and coefficient of consolidation for Houston clays.
03
Unconfined Compressive Strength (UCS)
Quick undrained strength tests on Shelby tube samples provide the su value needed for immediate bearing capacity calculations and slope stability analysis.
04
Triaxial Compression (UU and CU)
We perform unconsolidated-undrained and consolidated-undrained triaxial tests on intact specimens to evaluate shear strength parameters under controlled confining pressures.
Applicable standards
ASTM D1587-15 (Standard Practice for Thin-Walled Tube Sampling), ASTM D4220/D4220M (Standard Practices for Preserving and Transporting Soil Samples), ASTM D2435 (Standard Test Method for One-Dimensional Consolidation Properties of Soils), ASTM D2850 (Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test)
Frequently asked questions
How does undisturbed sampling with a Shelby tube differ from SPT sampling?
The Standard Penetration Test (SPT) uses a split-spoon sampler driven by a hammer, which severely disturbs the soil structure. Shelby tube sampling pushes a thin-walled tube hydraulically into the ground, extracting an intact core. This undisturbed sample is essential for consolidation, triaxial, and unconfined strength tests that require the soil's natural fabric and moisture content.
What is the cost range for Shelby tube sampling in Houston?
For a typical project in Houston, undisturbed sampling with Shelby tubes costs between US$450 and US$960 per sample point, depending on depth, number of tubes, and whether field supervision is required. The price includes tube advance, sealing, labeling, and transport to the lab.
What soil types in Houston require undisturbed sampling?
Expansive clays of the Beaumont and Lissie formations, soft alluvial deposits along bayous, and compressible organic soils in former marshlands all require Shelby tube sampling. These materials lose their structure when disturbed, making lab tests on remolded samples unreliable for settlement and strength analysis.
How should Shelby tube samples be handled after extraction?
Immediately after extraction, the tube ends are sealed with wax and plastic caps, labeled with depth and project information, and stored upright in a cool, vibration-free environment. Samples must be transported to the lab within 24 hours and tested quickly to avoid moisture loss or spoilage.
