Houston sits on the Beaumont Formation, a thick sequence of Pleistocene clay, silt, and sand extending over 100 feet deep in many areas. The clay here is highly plastic, often with liquid limits above 60, and the water table can be encountered as shallow as 5 to 15 feet below grade. For any structure requiring deep foundations, the SPT (Standard Penetration Test) is the primary method to profile these variable layers. We use a safety hammer and standard split-spoon sampler per ASTM D1586-18, recording blow counts every 1.5 feet. Before designing a drilled shaft or driven pile, we correlate N-values to undrained shear strength and modulus, which is critical given the region's shrink-swell potential. Many projects also need a capacidad de carga analysis to verify allowable bearing pressures in the underlying sand strata.
In Houston's Beaumont clay, an uncorrected N-value of 8 can represent a shear strength of 1,500 psf after empirical correlation.
Methodology and scope
A common mistake we see from contractors in Houston is assuming N-values from a single boring represent the entire site. The city's geology includes buried Pleistocene channels and localized sand lenses that can vary over 50 feet horizontally. We perform SPT borings on a grid spacing of 50 to 100 feet, depending on the building footprint. Each boring reaches refusal in the dense sand or stiff clay, typically terminating at 60 to 80 feet. The hammer energy is measured with an analyzer to correct N60 values, as required by ASTM D1586. When we encounter sand layers, we also retrieve undisturbed samples for granulometria to assess liquefaction potential under seismic loading. The procedure is straightforward but demands strict rod straightness and hammer alignment.

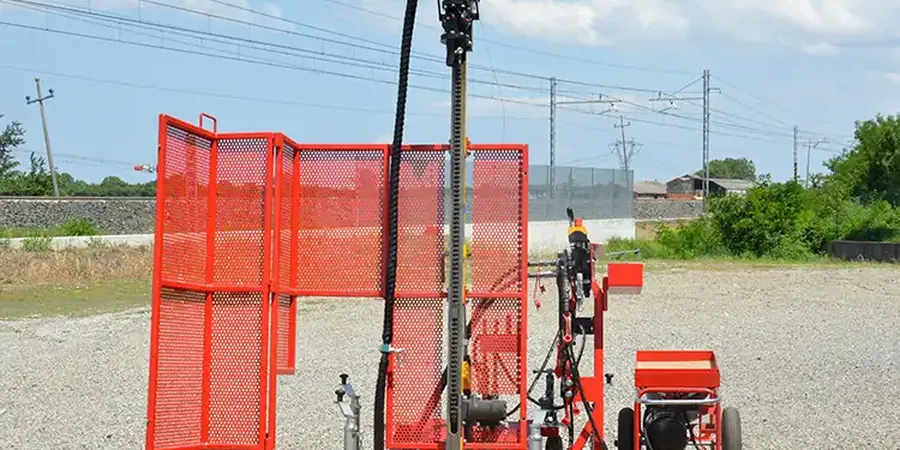

Technical reference image — Houston
Local considerations
Houston sits at an elevation of just 50 feet above sea level, with a population exceeding 2.3 million in the city proper. The region's flat topography and high water table create a persistent risk of hydrostatic uplift on shallow foundations. Without an SPT-based profile, designers may underestimate the compressibility of the upper clay crust, which can experience 2 to 4 inches of consolidation settlement under moderate loads. The 1900 Storm and subsequent flood events remind us that soil behavior under saturated conditions is unpredictable. We correlate SPT blow counts with undrained shear strength using empirical relationships (e.g., Terzaghi-Peck) to set realistic allowable bearing capacities for spread footings and mats.
After DSM columns are installed to treat soft clay layers, we conduct SPT borings through the treated zone to verify shear strength improvement. The N-values typically rise from single digits to over 30, confirming column integrity.
02
Liquefaction Assessment with SPT
For sites near Buffalo Bayou or the Ship Channel, we use SPT-based liquefaction triggering analysis per Youd-Idriss (2001). N1(60) values below 15 in saturated sands indicate moderate to high liquefaction potential, requiring ground improvement.
How does the SPT procedure differ in Houston's expansive clay versus sandy soils?
In clay, the split-spoon often clogs with sticky clay, requiring careful cleaning between blows to avoid false high N-values. In sand, the spoon advances easily but the blow count can spike at gravel layers. We adjust the hammer energy correction for each material.
What are typical N-values for the Beaumont clay in Houston?
The upper 10 to 20 feet of Beaumont clay typically yields N-values of 5 to 12. Below that, the clay becomes stiffer, reaching N-values of 20 to 30 at depths of 30 to 50 feet. Sand lenses may show N-values of 25 to 50.
How much does an SPT investigation cost in Houston?
A standard SPT boring program in Houston ranges from US$620 to US$790 per borehole, including mobilization, drilling, sampling, and laboratory testing. Costs increase for deeper borings or difficult access conditions.
Can SPT results be used to design spread footings in Houston clay?
Yes, but we recommend correlating N-values with undrained shear strength using the relationship su (psf) ≈ N60 × 50 (for clay). For typical office buildings, allowable bearing capacities of 2,000 to 4,000 psf are common after settlement analysis.
