Lime and Cement Stabilization in Houston

Clay soils in Bellaire behave differently than those in the Heights. Houston's expansive clays shrink and swell with moisture, causing foundation movement. Lime and cement stabilization in Houston treats this problem at depth. The process alters soil chemistry permanently. Clay particles bond with calcium ions from lime or cement. This reduces plasticity index and increases bearing capacity. The treatment depth typically reaches 12 to 18 inches, depending on project requirements. A proper mix design study, starting with Atterberg limits and Proctor compaction, is essential before any large application. For deeper soil issues, teams often combine stabilization with excavaciones profundas to remove and replace poor material.

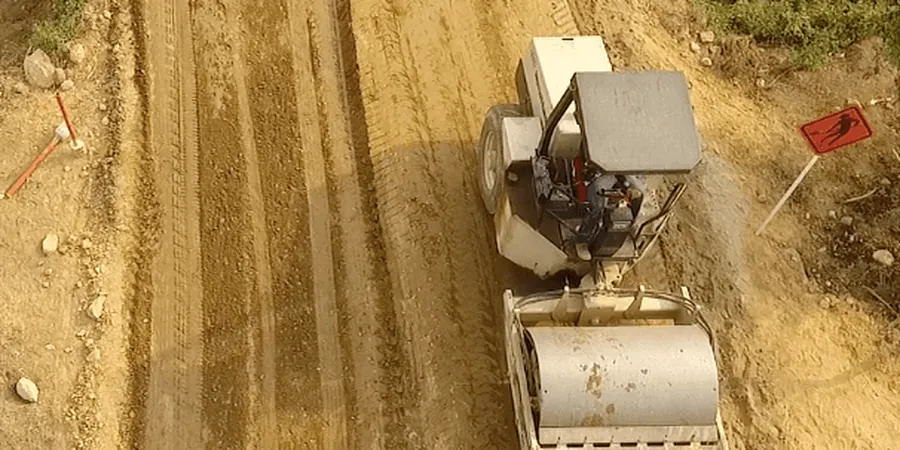

Illustrative image of Lime and cement stabilization in

Houston's expansive clays shrink and swell with moisture — lime and cement stabilization alters the soil chemistry permanently.

Methodology and scope

A common mistake is assuming all clay responds the same way. High-plasticity clays (CH) need lime first to reduce plasticity. Cement then adds strength. Without lab tests, contractors waste materials and money. The stabilization process follows strict steps: soil sampling, Atterberg limit tests, compaction curves, and unconfined compressive strength tests. Mix designs vary from 3% to 8% lime or 4% to 10% cement by dry weight. Field verification uses density tests and in-situ California Bearing Ratio (CBR) checks. Houston's high water table demands careful moisture control during mixing. If the subgrade stays wet, consider using geoceldas for confinement or drenaje-geotecnico to lower pore pressure before treatment.

Local considerations

Houston sits at about 50 feet above sea level. Its flat terrain and clay soils create drainage challenges. After heavy rainfall, untreated clay swells and pushes against foundations. The National Weather Service recorded over 60 inches of rain in 2017 during Hurricane Harvey. For any new slab-on-grade or shallow foundation, untreated expansive soil leads to cracking and differential settlement. Stabilization with lime or cement mitigates this risk by reducing swell potential and increasing shear strength. It also prevents long-term pavement failure in streets and parking lots across the city.

Technical parameters

Parameter	Typical value
Lime content range	3% – 8% by dry weight
Cement content range	4% – 10% by dry weight
Target unconfined compressive strength (7 days)	≥ 100 psi (ASTM D2166)
Reduction in plasticity index	≥ 50% of original PI
Treatment depth	12 – 18 inches typical
Field compaction density	≥ 95% of maximum dry density (ASTM D698)

Associated technical services

Lime Stabilization

Treatment of high-plasticity clays (CH) using hydrated lime. Process includes pulverization, mixing, moisture control, and compaction. Suitable for road subgrades, building pads, and parking lots.

Cement Stabilization

Portland cement mixed with soil to achieve rapid strength gain. Used for shallow foundations, slab-on-grade, and pavement base courses. Follows ASTM C150 and IBC Chapter 18 requirements.

Frequently asked questions

How much does lime and cement stabilization cost per square foot in Houston?

Typical costs range between US$950 and US$2,560 for a standard residential lot, depending on treatment depth, material type, and site accessibility. Large commercial projects are priced per square foot and vary by volume.

What is the difference between lime and cement stabilization?

Lime first reduces plasticity and swell potential in high-plasticity clays. Cement then adds compressive strength and durability. Lime is better for very wet or high-PI soils; cement works faster for load-bearing layers.

How long does the stabilization process take to complete?

Mix design testing takes 5 to 7 days. Field application for a typical lot takes 1 to 2 days. Curing time before loading is 7 to 14 days for cement and up to 28 days for lime, depending on moisture and temperature.
