The clay soils around Memorial Park are markedly different from the sandy layers near the Houston Ship Channel. In Memorial, you find high-plasticity Beaumont clays that shrink and swell with moisture, while closer to the channel, the ground shifts toward silty sands and alluvial deposits. That contrast matters directly for slope stability analysis in Houston. A cut slope that holds fine-grained soil near the Galleria might be perfectly safe at 2H:1V, but the same geometry in the sandy bank of Buffalo Bayou could fail after a heavy rain. Our team evaluates each site using site-specific shear strength parameters, pore pressure conditions, and the actual stratigraphy encountered. We typically run circular and non-circular failure surfaces with Spencer's method to satisfy both force and moment equilibrium, and we cross-check results against the simplified Bishop method for comparison.
A saturated clay slope in Houston can lose 30% of its undrained strength after a week of Gulf moisture — that ratio changes the factor of safety dramatically.
Methodology and scope
What we see most in Houston is that the high-plasticity clays lose strength rapidly under sustained wetting. After a few days of Gulf moisture, undrained shear strength can drop by 30% or more. That's why our slope stability analysis in Houston always includes a worst-case saturated scenario. We model the phreatic surface based on local drainage patterns and historical rainfall data from the Harris County Flood Control District. In our experience, the critical failure surface often follows a weak clay seam that formed during the Pleistocene. To capture that, we combine our analysis with sondajes SPT to obtain N-values and undisturbed samples, and we use permeabilità in situ to measure infiltration rates near the slope face. When the slope sits on a compressible layer, we also run consolidation tests to account for strength gain over time. The final factor of safety is compared for short-term (undrained) and long-term (drained) conditions, always referencing ASCE 7 minimums.

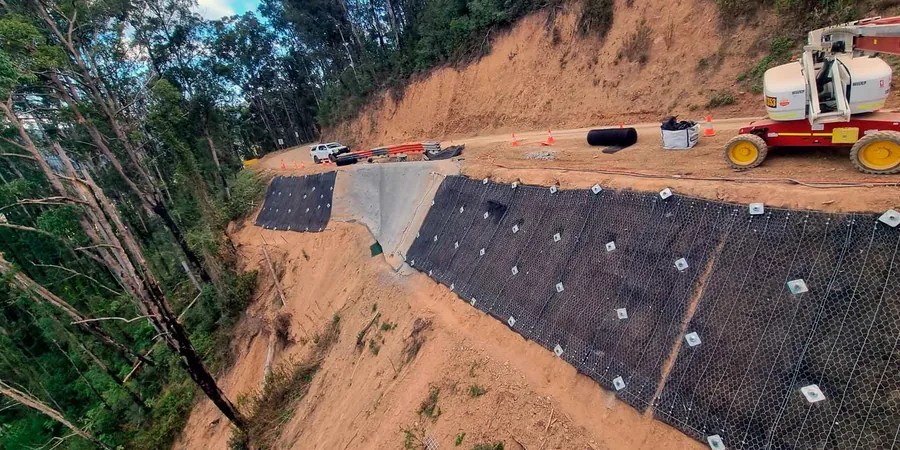

Technical reference image — Houston
Local considerations
Houston grew fast after the 1960s, often without thorough geotechnical investigation. Many subdivisions were built on cut-and-fill lots where the fill came from the same high-plasticity clay. Over decades, differential settlement and slope creep have become common in neighborhoods like Meyerland and Braeswood. The risk is that a slope that looked stable at construction may fail years later as trees withdraw moisture, then heavy rains saturate the desiccated cracks. We have seen retaining walls tilt and sidewalks crack because the original slope stability analysis didn't account for the cyclic shrink-swell behavior. That's why our analysis always includes a sensitivity check on the effective cohesion and friction angle, and we recommend periodic monitoring for any signs of movement.
Using Slide2 and SLOPE/W, we compute factors of safety for circular and non-circular slip surfaces. We apply Spencer's, Bishop's, and Morgenstern-Price methods. Pore pressure is modeled from field piezometers and infiltration data. Output includes critical slip surface location, 3D effects, and reinforcement design if needed.
02
Finite Element / Finite Difference Analysis (FEM/FDM)
For complex geometries or staged construction, we use Plaxis 2D and FLAC. This captures stress-strain behavior, progressive failure, and the effect of soil-structure interaction. We model excavation sequences, berm loading, and the impact of transient seepage. Suitable for slopes adjacent to highways, levees, or building foundations.
What is the difference between Bishop's method and Spencer's method for slope stability?
Bishop's simplified method only satisfies moment equilibrium, not force equilibrium, which makes it slightly conservative for circular failures. Spencer's method satisfies both moment and force equilibrium and works for non-circular surfaces as well. For Houston clays with weak seams, Spencer's method is more reliable because it can follow the actual failure path through the stratum.
How much does a slope stability analysis cost in Houston?
A typical slope stability study in Houston ranges between US$1.230 and US$4.070 depending on the number of cross-sections, the complexity of the geometry, and whether you need limit equilibrium or finite element analysis. The final cost is tailored to the project scope and the number of failure surfaces analyzed.
Do I need a slope stability analysis for a shallow excavation in my backyard?
It depends on the excavation depth and soil type. In Houston's clay, any cut deeper than 4 feet should be evaluated for stability, especially if the slope is steeper than 2H:1V. Even a shallow trench can collapse if saturated clay loses strength after rain. Municipal permits often require a geotechnical report for cuts over 5 feet.
What software do you use for slope stability analysis?
We use Slide2 (Rocscience) for limit equilibrium and Plaxis 2D for finite element analysis. Both are industry-standard programs validated by FHWA and ASCE. For seismic pseudo-static analysis we apply a horizontal seismic coefficient per ASCE 7 and check the factor of safety against a minimum of 1.1.
Location and service area
We serve projects across Houston and its metropolitan area.
