Houston sits on expansive clay soils that shift with seasonal moisture. The city receives about 50 inches of rain per year, saturating the ground and weakening support for pavements. A CBR study for road design in Houston becomes essential before placing asphalt or concrete. Without it, the subgrade may fail under traffic loads. We perform the penetration test per ASTM D1883 on soaked and unsoaked samples. The result guides the required thickness of base layers. This step prevents premature cracking and rutting. For projects on soft clay, we often combine the CBR with a subgrade evaluation to verify bearing capacity before the pavement design proceeds.
A soaked CBR of 3 means the subgrade will need at least 12 inches of granular base to protect the pavement from fatigue cracking.
Methodology and scope
Houston has a population of over 2.3 million and a metro area that spans more than 10,000 square miles. Its flat coastal plain drains slowly, so water ponds easily. A CBR study for road design in Houston must account for this drainage challenge. We compact samples at optimum moisture using the Proctor test to mimic field conditions after compaction. CBR values here typically range from 2 to 8 in natural clay, and from 15 to 40 in stabilized or granular materials. We run the test on soaked specimens to simulate the worst-case wet season. The lab reports the California Bearing Ratio at 0.1 and 0.2 inches of penetration. For pavement thickness design, we follow AASHTO 1993 or the newer Mechanistic-Empirical method. When the subgrade CBR is low, we recommend a lime-cement stabilization layer to improve the support and reduce the required base thickness.

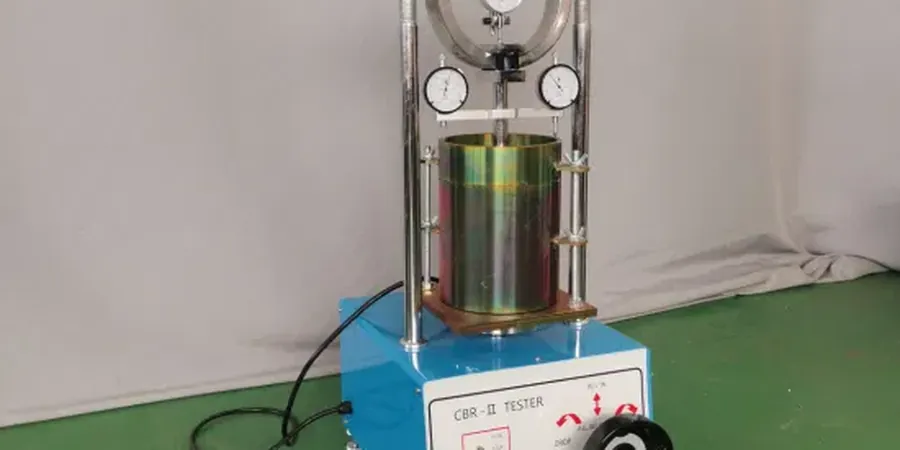

Technical reference image — Houston
Local considerations
A collector road in southeast Houston was designed with a 6-inch base on untreated clay. The CBR study had been skipped due to budget cuts. After the first wet spring, the base sank into the softened subgrade. Ruts formed within weeks. The repair cost three times what the original CBR test would have. That scenario is common in Houston. The clay here has high plasticity and low permeability. Water trapped under the pavement reduces the CBR drastically. A proper CBR study for road design in Houston flags those zones early and saves the project from expensive rework.
We classify the soil by AASHTO and USCS methods, including Atterberg limits and grain size distribution. This identifies the exact clay type and its potential for volume change.
02
Soaked and unsoaked CBR testing
We run the penetration test on samples compacted at optimum moisture. Soaked specimens sit underwater for 96 hours to simulate the worst-case saturation. The lab report shows CBR at 0.1 and 0.2 inches.
03
Pavement thickness design
Using the CBR value and traffic data, we calculate the required base and surface layer thickness per AASHTO 1993 or Mechanistic-Empirical methods. We provide a ready-to-use structural section.
Applicable standards
ASTM D1883-21 (Standard Test Method for CBR of Laboratory-Compacted Soils), AASHTO T 193-21 (CBR of Compacted Soils), AASHTO 1993 Guide for Design of Pavement Structures
Frequently asked questions
What does a CBR value of 5 mean for road design?
A CBR of 5 indicates a weak subgrade. The pavement design will need a thicker granular base, typically 10 to 14 inches, to distribute traffic loads without excessive deformation. Stabilization with lime or cement is often recommended.
How much does a CBR study cost in Houston?
The price ranges from US$150 to US$340 per test point, depending on the number of samples, compaction energy, and whether soaked or unsoaked conditions are required. A typical project with 5 points runs between US$750 and US$1,700.
Why must the sample be soaked for 96 hours?
Soaking replicates the saturation that occurs during heavy rains in Houston. The clay absorbs water and loses strength. The test after soaking gives a conservative CBR that protects the pavement during the wettest months of the year.
What is the difference between CBR and resilient modulus (Mr)?
CBR is a static penetration test that measures shear resistance under a plunger. Resilient modulus (Mr) measures the elastic response under repeated loads, simulating traffic. Mr can be estimated from CBR using the correlation Mr = 1500 × CBR (for fine-grained soils).
Can I use the same CBR value for a parking lot and a highway?
No. The subgrade CBR is the same soil property, but the design traffic loads differ. A highway needs a thicker structure because it carries more load repetitions. The CBR result feeds into different design equations for each application, yielding different pavement thicknesses.
