A 20‑story mixed‑use tower near the Galleria area had to be founded on deep foundations because the underlying Beaumont clay would otherwise settle more than 6 inches over a decade. The owner considered preloading without surcharge to reduce post‑construction settlement, a common approach in Houston’s shrink‑swell soils. Preloading design (without surcharge) works by placing a temporary fill layer that matches the final load, allowing the clay to consolidate before permanent construction begins. In Houston, where the water table sits only 4 to 8 feet below grade, drainage layers and wick drains often accelerate the process. Combining this with a settlement analysis helps engineers predict how much movement will actually occur under the proposed fill weight.
Without extra weight beyond the design load, consolidation time in Houston clays can exceed 18 months — field verification is non‑negotiable.
Methodology and scope
A frequent mistake contractors make in Houston is assuming that preloading without surcharge is the same as surcharging. It is not. Without extra weight beyond the design load, the time to reach 90% consolidation can stretch to 18 months or more in thick clay layers. The design must account for the secondary compression index Cα, which for the local Lissie formation can be 0.005 to 0.015. Field monitoring with settlement plates and piezometers is essential. If the clay is highly overconsolidated, the team may recommend wick drains to shorten drainage paths. The key parameters for a proper preloading design (without surcharge) include:
Pre‑consolidation pressure σp from oedometer tests
Compression index Cc and recompression index Cr
Coefficient of consolidation cv (typically 0.1–1.0 ft²/day for Houston clays)
Drainage path length and required fill height

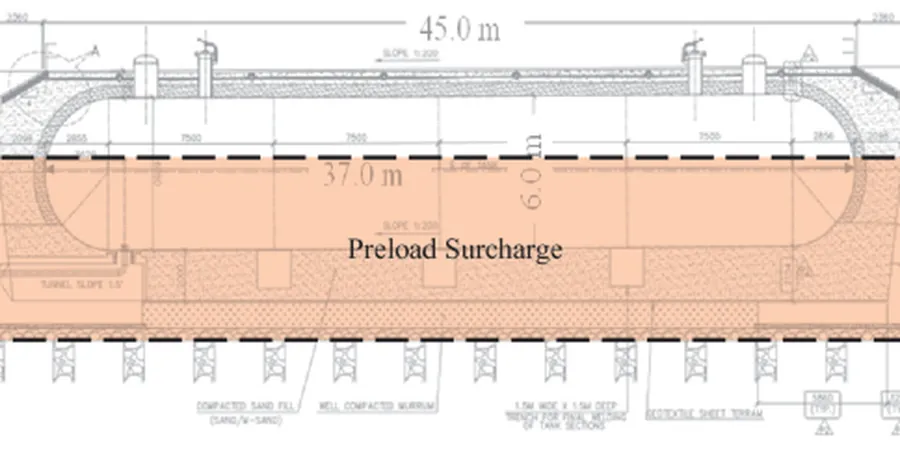

Technical reference image — Houston
Local considerations
The geotechnical team mobilizes a drill rig to collect undisturbed Shelby tube samples at 5‑ft intervals down to 80 ft. Back at the lab, incremental loading oedometers run for up to 10 days per test to capture the full consolidation curve. If the preloading design (without surcharge) underestimates settlement, the building could experience differential movements that crack parking garage slabs and tilt elevator shafts. Houston’s history of expansive soils makes this risk especially high near the Katy Prairie and along Buffalo Bayou. The team cross‑references results with local county soil surveys and previous nearby reports to calibrate the model.
Oedometer tests (incremental load and constant rate of strain) to determine Cc, Cr, cv, and σp for Houston clay profiles. Results include staged‑loading recommendations tailored to your fill schedule.
02
Field Monitoring & Instrumentation
Installation and weekly reading of settlement plates, vibrating‑wire piezometers, and inclinometers. Real‑time data feeds allow the design team to adjust fill placement rates and confirm when target consolidation is achieved.
Applicable standards
ASTM D2435 – Standard Test Methods for One‑Dimensional Consolidation, ASTM D4186 – Standard Test Method for One‑Dimensional Consolidation (OCR), IBC Chapter 18 – Soils and Foundations (2021), FHWA‑NHI‑16‑072 – Embankment Design and Construction
Frequently asked questions
How long does preloading without surcharge typically take in Houston?
For a 10‑ft fill on 30‑ft of Beaumont clay with wick drains at 6‑ft spacing, 90% consolidation is often reached in 8 to 14 months. Without drains, the same scenario can exceed 24 months. The timeline is site‑specific and depends on clay thickness, cv, and drainage boundaries.
What is the typical cost range for a preloading design study in Houston?
A full preloading design without surcharge — including lab consolidation tests, settlement analysis, and a monitoring plan — typically ranges between US$830 and US$1,990. The final cost depends on the number of boreholes, sample depth, and whether wick drains are included in the scope.
Can preloading without surcharge work on Houston's highly plastic clays?
Yes, but only if the pre‑consolidation pressure is clearly identified. Houston's Beaumont and Lissie clays are often overconsolidated by past desiccation, so the fill load may not exceed σp. In that case, settlement will be small and preloading may be unnecessary. A detailed oedometer program is required to confirm.
