Houston sits on deep alluvial deposits from the Brazos and Trinity rivers, with expansive Beaumont clay dominating the upper 10 to 15 meters. These high-plasticity clays (CH) exhibit significant volumetric change with moisture variation, making settlement analysis essential for any medium-to-heavy structure. We combine oedometer tests per ASTM D2435 with field data to predict immediate and consolidation settlement under design loads. Before interpreting results, we often run a veleta de campo to measure undrained shear strength in soft zones, and a presurometro for lateral deformation modulus. Our lab also performs index tests to refine soil classification and void ratio estimates. The goal is always a clear, defensible prediction of total and differential settlement under service conditions.
Beaumont clay in Houston can settle up to 40 mm under a 200 kPa footing if preconsolidation pressure is exceeded — testing before design avoids costly remediation.
Methodology and scope
A typical 10-story building on Westheimer Road requires at least three consolidation tests on undisturbed samples taken from Beaumont clay layers. We measure compression index (Cc), recompression index (Cr), and coefficient of consolidation (Cv) at each depth. The workflow follows: retrieve Shelby tube samples, seal and transport to our ISO 17025-accredited lab, then run incremental loading oedometer tests with 24-hour load increments. We apply Casagrande's construction to determine preconsolidation pressure and overconsolidation ratio (OCR). For shallow footings, we couple this with a placa de carga field test to verify modulus of subgrade reaction. When clay is underlain by sand lenses, we include a granulometria to evaluate drainage and secondary settlement potential. The final report presents settlement versus time curves and recommendations for foundation type or ground improvement.

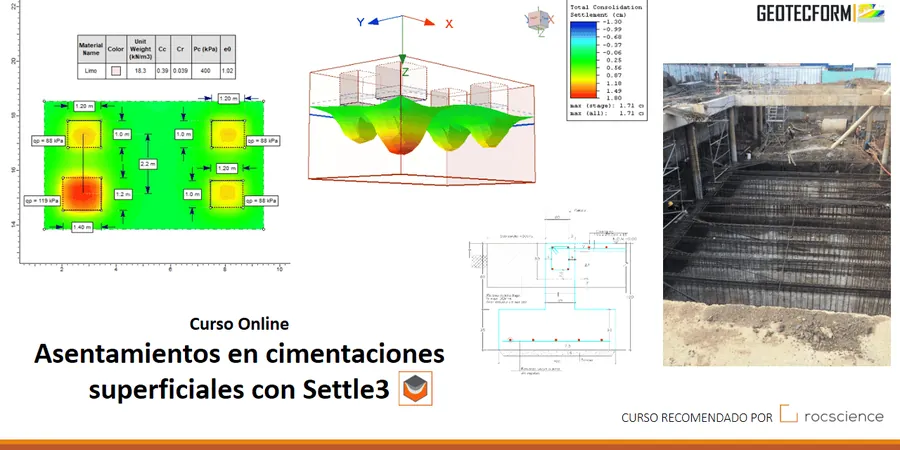

Technical reference image — Houston
Local considerations
In Houston, the biggest risk we see is differential settlement caused by localized desiccation or tree-root activity. A building may show only 10 mm total settlement, but 30 mm of differential movement across a 15-meter span — enough to crack load-bearing walls and tilt slabs. Many owners underestimate the impact of seasonal moisture cycles on Beaumont clay. We always recommend monitoring moisture content profiles before and after excavation, and we flag zones where OCR approaches 1.0, indicating normally consolidated clay prone to significant settlement under new loads. Ignoring these conditions can lead to foundation repairs costing multiples of the original geotechnical investigation.
Oedometer tests on undisturbed samples from Beaumont clay, with Cc, Cr, Cv, and OCR determination. Includes time-rate curves and total settlement estimates for spread footings, mat foundations, and pile caps. Delivered with a clear summary table and recommended foundation depth.
02
Differential Settlement Risk Assessment
Field moisture profiling, Atterberg limits, and consolidation tests at multiple boreholes to map variability across the site. We identify zones of high differential movement potential and recommend ground improvement or structural stiffening measures. Includes a risk matrix for decision-making.
Applicable standards
ASTM D2435-20 — Standard Test Methods for One-Dimensional Consolidation, ASTM D4546-21 — Standard Test Methods for One-Dimensional Swell or Collapse, ASCE 7-22 — Minimum Design Loads and Associated Criteria for Buildings, IBC 2021 — International Building Code, Chapter 18 (Soils and Foundations)
Frequently asked questions
How long does a full settlement analysis take in Houston?
A standard analysis with three consolidation tests and reporting takes 3 to 4 weeks. Field sampling adds 2 to 3 days. If rapid results are needed, we can expedite with one-dimensional consolidation on a single sample in about 10 working days.
Do I need settlement analysis for a single-family home in Houston?
For homes on expansive clay with pier-and-beam foundations, a simplified analysis using CPT data or index correlations may suffice. But for slab-on-grade on Beaumont clay, differential settlement is a known risk; we recommend at least two consolidation tests per building footprint.
What is the typical cost of settlement analysis in Houston?
A complete package including field sampling, three consolidation tests, and a detailed report ranges from US$690 to US$1,770. The exact price depends on the number of samples, depth of borings, and whether more advanced tests like triaxial or permeability are required.
How does settlement analysis differ from a soil bearing capacity test?
Bearing capacity tells you the maximum load a soil can carry before failure. Settlement analysis predicts how much the soil will compress under that load over time. They are complementary: you need both to design a foundation that is safe and serviceable.
Location and service area
We serve projects across Houston and its metropolitan area.
