We roll a Bauer BG 28 onto site, and the first thing we check is the bentonite slurry density. Houston's geology is a stacked sequence: stiff Beaumont clay near surface, then water-bearing sands, and finally the hard Montgomery clay at depth. For a 60-foot-deep diaphragm wall panel, the trench stability depends entirely on the slurry's unit weight and the piezometric head in the sand layers. We've seen panels collapse when contractors guessed at the fluid level instead of calculating it. That's why before any diaphragm wall design in Houston, we run a detailed permeability field test to map the sand's hydraulic conductivity. Without that data, the slurry loss can be catastrophic.
In Houston's high-plasticity clays, a diaphragm wall's bending moment can double if you ignore the undrained shear strength gain with depth.
Methodology and scope
A 15-story tower on Louisiana Street needed a 2.5-foot-thick diaphragm wall to retain 55 feet of excavation. The wall had to cut through a perched water table just 12 feet down. Our design included a tremie concrete mix with a slump of 8 inches and a 28-day strength of 5,000 psi. We also integrated a geotechnical drainage system behind the wall to relieve hydrostatic pressure. For the panel joints, we used a waterstop system because the adjacent building's foundation sat only 4 feet from the excavation line. The wall's structural thickness came from a finite element analysis that accounted for the soil's stress-strain behavior under undrained conditions. We cross-checked our assumptions with a CPT sounding to validate the soil stiffness profile. The wall performed without a single crack or leak.

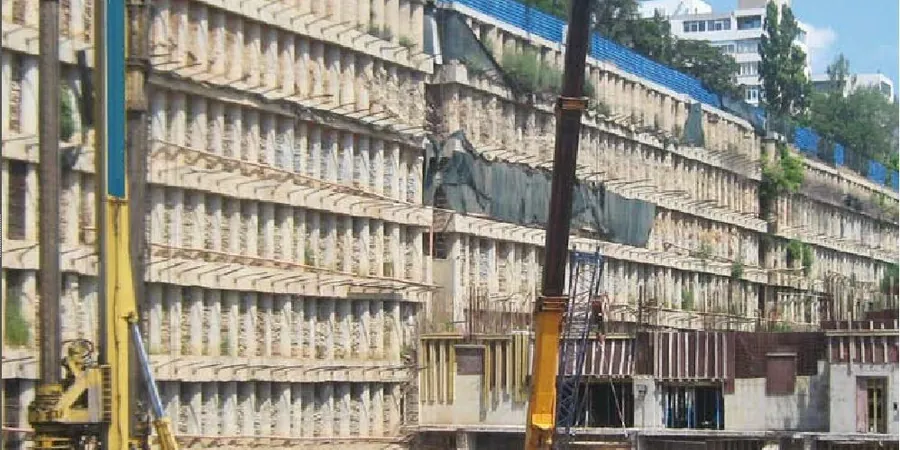

Technical reference image — Houston
Local considerations
Houston sits on the Gulf Coast aquifer system, and the water table can rise 8 feet after a heavy rain event. During Hurricane Harvey, several excavation sites saw hydrostatic pressures that exceeded the wall's design capacity. The biggest risk for diaphragm wall design in Houston is underestimating the transient pore pressure in the sand lenses. We always model a worst-case flood scenario with the phreatic surface at ground level. That means the wall must resist a full hydrostatic head, plus the active earth pressure from the saturated clay. We also check for soil piping at the toe of the wall when the sand layers are high-permeability. A poorly designed joint can turn into a sand boil in minutes.
2D and 3D modeling using PLAXIS and SAP2000 to compute bending moments, shear forces, and deflections under combined earth and water pressures. We calibrate the soil model with site-specific triaxial tests.
02
Slurry Wall Mix Design
Design of bentonite-cement slurries for trench stability, including viscosity, filtrate loss, and gel strength testing per API 13B. We optimize the mix to minimize waste and prevent soil contamination.
Applicable standards
ASCE 7-22 (Minimum Design Loads), IBC 2021 Chapter 18 (Soils and Foundations), ACI 543R-12 (Design of Diaphragm Walls), ASTM D1586 (SPT for soil parameters)
Frequently asked questions
What is the typical cost range for diaphragm wall design in Houston?
For a standard residential or mid-rise project in Houston, the design fee ranges between US$1,840 and US$7,870, depending on wall depth, soil complexity, and the number of panels. Large commercial walls with multiple soil layers and high water tables fall at the upper end.
How deep can diaphragm walls go in Houston's clay soils?
We have designed walls up to 110 feet deep in the Beaumont and Montgomery clays. The limiting factor is usually the tremie concrete placement: you need a good slump retention to avoid cold joints. Below 120 feet, the hydrostatic pressure can make the slurry control very tricky.
What is the difference between a diaphragm wall and a secant pile wall?
A diaphragm wall is a continuous reinforced concrete panel wall cast in a slurry trench. A secant pile wall uses overlapping concrete piles. For Houston's high water table, diaphragm walls offer better watertightness because you get a monolithic panel with no pile gaps. They also handle higher bending moments for deep excavations.
