Houston's geology presents a unique challenge for shallow foundation design. The city sits atop deep deposits of highly plastic clay, known locally as Beaumont Clay, which undergoes significant volume change with moisture fluctuations. This behavior demands a design approach that goes beyond standard code minimums. We comply with ASCE 7-22 for load combinations and IBC Chapter 18 for foundation performance. For any project in this region, a proper site investigation using calicatas exploratorias is essential to characterize the soil profile before committing to a foundation type.
In Houston, ignoring the shrink-swell potential of Beaumont Clay can lead to foundation movement exceeding 2 inches within two years.
Methodology and scope
A common mistake we see is assuming a standard spread footing will work uniformly across Houston. The reality is that shrink-swell potential varies drastically within a single block. Our shallow foundation design process begins with laboratory classification of Atterberg limits and natural moisture content. We then model the expected heave and settlement under the proposed structural loads. Key parameters we evaluate include:
Plasticity Index (PI) and shrinkage limit to quantify volume change.
Swelling pressure from oedometer tests.
Net allowable bearing pressure at design depth.
We also cross-check these results with suelos expansivos analysis to predict long-term performance under seasonal wet-dry cycles.

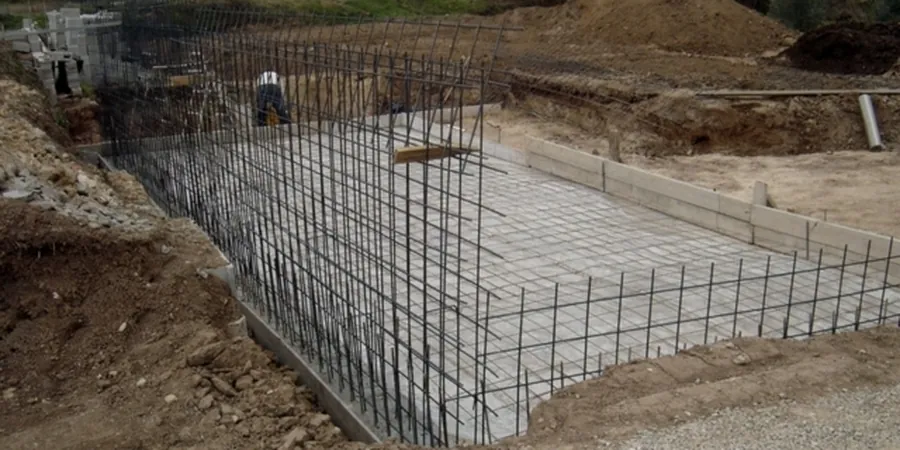

Technical reference image — Houston
Local considerations
A 10-story apartment complex near the Galleria area was designed with conventional spread footings at 4 feet depth. Within 18 months of construction, differential settlement reached 1.8 inches. Cracks appeared in interior walls and the elevator shaft tilted. The problem traced back to an undetected clay layer with a plasticity index of 68. Our investigation revealed the active zone extended to 7 feet. The solution required underpinning with drilled shafts and a post-tensioned slab. That project taught us the hard way: in Houston, shallow foundation design must account for the full active zone depth, not just the frost line.
Boreholes, test pits, and undisturbed sampling to characterize soil stratigraphy and obtain high-quality samples for laboratory testing.
02
Laboratory Testing for Expansive Soils
Atterberg limits, free swell, swelling pressure (ASTM D4546), and consolidation tests to quantify volume change potential.
03
Foundation Analysis & Design Report
Geotechnical calculations for bearing capacity, settlement, and heave. Includes recommendations for footing dimensions, depth, and reinforcement.
04
Post-Tensioned Slab-on-Grade Design
Specifically adapted for Houston's clay soils. We determine slab thickness, tendon layout, and edge beam requirements per PTI guidelines.
Applicable standards
ASCE 7-22 (Minimum Design Loads and Associated Criteria), IBC 2021 Chapter 18 (Soils and Foundations), ASTM D4546-21 (One-Dimensional Swell or Collapse of Soils), ASTM D4318-17 (Liquid Limit, Plastic Limit, and Plasticity Index)
Frequently asked questions
How deep should a shallow foundation be in Houston?
We typically recommend a minimum depth of 3 to 4 feet below grade to get below the active zone of seasonal moisture change. In areas with high plasticity clay (PI > 50), depths of 5 to 6 feet may be necessary to avoid heave-induced movement.
What is the typical cost for a shallow foundation design study in Houston?
For a single-family home or small commercial building, the geotechnical investigation and design report typically ranges from US$1.920 to US$3.440. This includes 2-3 boreholes, lab testing, and a written report with foundation recommendations.
What is the difference between a spread footing and a mat foundation for Houston clay?
Spread footings are individual pads that concentrate load. They work well when soil bearing capacity is uniform and settlement is minimal. Mat foundations distribute load over a larger area, reducing differential movement. In highly expansive clay, a stiffened mat or post-tensioned slab is often more reliable because it bridges over localized heave zones.
Do I need a foundation design for a small addition or patio?
Yes. Even a small structure can be affected by Houston's clay movement. A lightweight addition with an inadequate foundation can crack at the connection point with the existing house. A simple geotechnical evaluation and foundation design can prevent costly repairs later.
Location and service area
We serve projects across Houston and its metropolitan area.
