In Houston, the deep alluvial deposits of the Brazos and Trinity River systems create a complex subsurface profile that often masks the bedrock interface at depths exceeding 1,000 meters. What we see repeatedly on projects here is that standard borings alone rarely capture the stiffness profile needed for seismic site classification under ASCE 7-16. That is why MASW surveys have become a practical first step — they map shear wave velocity (VS30) continuously across a site, giving us the NEHRP site class without drilling dozens of holes. When combined with a targeted ensayo SPT in critical layers, the correlation between surface-wave dispersion and penetration resistance provides a solid picture of the soil's dynamic response.
A single MASW line in Houston's alluvial plain can replace five to eight borings for site-class determination, cutting field time by 60%.
Methodology and scope

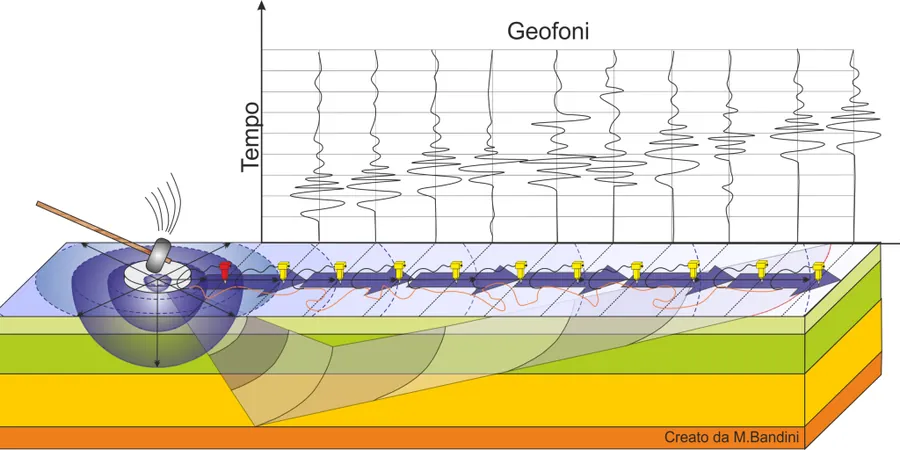

For Houston's typical profile — soft clays and silty sands underlain by stiff Pleistocene clays — the MASW survey uses a 24-channel seismograph with 4.5 Hz geophones spaced 2 to 5 meters apart along a linear array. The energy source is a 10-kg sledgehammer striking a steel plate, generating surface waves that the array records over 1 to 2 second windows. Processing involves dispersion-curve extraction via phase-shift transform, then inversion using a genetic algorithm to derive the 1D VS profile to 30 meters or deeper. The resulting VS30 value directly determines the NEHRP site class (A through F) per ASCE 7-16 Table 20.3-1. For sites with suspected lateral variability, we integrate results with a tomografía sísmica to capture 2D stiffness contrasts, and in soft compressible zones we cross-check with ensayo CPT for additional stratigraphic detail.
Technical reference image — Houston
Local considerations
Houston's rapid post-war expansion pushed development onto former floodplains and marshlands where the top 10 to 15 meters consist of high-plasticity clays (CH) with very low shear wave velocities — often below 180 m/s. The 1900 Storm and subsequent drainage projects created artificial fills whose stiffness is highly variable. Without a VS30 survey, a designer might assume Site Class D based on blow counts alone, but the actual site could be Class E, triggering a 30% increase in seismic base shear under ASCE 7-16. That mismatch can lead to either under-designed foundations or unnecessary over-spending on lateral systems. The local challenge is that the deep soil profile shifts from soft clay to stiff clay at irregular depths, so a single MASW line gives the spatial continuity that isolated borings cannot.
Using the VS30 profile as input, we run one-dimensional site response analyses (equivalent-linear or nonlinear) to compute acceleration response spectra at the ground surface. This is critical for Houston's long-period structures — buildings above 10 stories — where the soft soil can amplify long-period motions.
02
Liquefaction Hazard Screening
Shear wave velocity correlates strongly with liquefaction resistance. We use the VS30 profile together with SPT data to evaluate liquefaction triggering potential under the 2% and 10% probability of exceedance ground motions, following the procedures of Youd et al. (2001) and Idriss & Boulanger (2008).
03
Geophysical Correlation with Borings
We calibrate the MASW dispersion curves against measured SPT N-values and laboratory shear wave velocity from resonant-column tests on undisturbed samples. This correlation improves the reliability of the site classification and reduces uncertainty in the design spectrum.
How does MASW compare to conventional borehole methods for VS30 determination in Houston?
MASW is non-invasive, covers a larger area in less time, and produces a continuous VS profile rather than discrete measurements at borehole locations. In Houston's deep alluvium, where the bedrock is often deeper than 1,000 m, MASW provides the top-30 m shear wave velocity needed for NEHRP classification without the cost of multiple deep borings. The trade-off is slightly lower vertical resolution compared to crosshole seismic, but the spatial coverage usually outweighs this limitation.
What is the typical cost range for an MASW / VS30 survey in Houston?
For a standard site requiring three to five survey lines (48 to 120 m each), the total cost typically falls between US$1.470 and US$3.040. The variation depends on site accessibility, the number of lines, and whether the data needs to be integrated with existing borehole information. A single-line screening survey for a small residential lot can be at the lower end, while a full multi-line campaign for a commercial building pad reaches the upper range.
What NEHRP site classes are most common in the Houston area based on MASW results?
Across the greater Houston metropolitan area, the majority of sites fall into Site Class D (stiff soil, VS30 180–360 m/s). In the Katy Prairie and along Buffalo Bayou, softer clays produce values in the 180–240 m/s range, often borderline Class E. The Pleistocene terraces north of the city (around The Woodlands and Conroe) show higher velocities of 280–350 m/s, still within Class D but with less amplification potential.
Can MASW detect the interface between the Beaumont clay and the underlying Lissie formation?
Yes, the contrast in shear wave velocity between the soft Beaumont clay (typically VS 150–200 m/s) and the stiffer Lissie sand (VS 300–400 m/s) produces a clear dispersion-curve inflection. In our Houston surveys, the interface is usually identified at depths between 10 and 18 m. This information is especially useful for deep foundation design, because the Lissie formation often provides better end-bearing conditions for driven piles.
