Houston sits on the Gulf Coastal Plain, where deep alluvial deposits of sand, silt, and clay create a unique liquefaction hazard. Cyclic loading from earthquakes — though infrequent — can trigger pore pressure buildup in these loose, saturated layers. Our team evaluates the cyclic resistance ratio (CRR) against the cyclic stress ratio (CSR) following the NCEER 2001 method, using SPT blow counts corrected for fines content. We cross-reference results with local groundwater data from the USGS, since Houston's shallow water table often sits within 3 meters of the surface. For sites near the Houston Ship Channel, we also consider historical fill behavior and combine this with a geotechnical site characterization to map soil behavior types across the property.
Houston's shallow water table and loose sands demand a rigorous liquefaction assessment using the NCEER 2001 method to get reliable factors of safety.
Methodology and scope
We run the analysis on field and lab data collected per ASTM D1586 for SPT and ASTM D5778 for CPT. The procedure involves:
Correcting N-values for overburden pressure (N1,60) and fines content
Calculating CRR using the Seed-Idriss simplified procedure updated by Youd et al.
Determining the magnitude scaling factor for the design earthquake
For deep profiles, we integrate MASW surveys to estimate VS30 and confirm site class per ASCE 7. This layered approach ensures the factor of safety against liquefaction is reliable across the full depth of interest, typically the upper 20 meters.

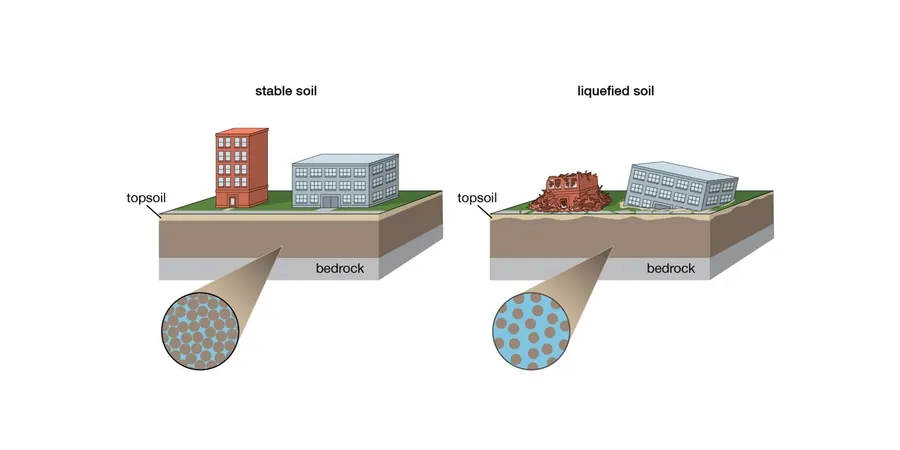

Technical reference image — Houston
Local considerations
In Houston, we often find that post-liquefaction settlement is underestimated by developers. The city's expansive clay crust can mask loose sand lenses underneath, giving a false sense of stability. During the 2014 seismic swarm near Dallas, some Houston sites experienced minor ground oscillation — a reminder that the Gulf Coast is not immune. Ignoring this risk can lead to differential settlement of shallow foundations, tilted slabs, or even burst utilities. Our reports include both peak ground acceleration (PGA) maps from the USGS and a liquefaction potential index (LPI) to quantify severity across the lot.
Standard Penetration Tests at 1.5 m intervals, with continuous sampling and energy measurements. We apply the Robertson & Wride (1998) method for fines correction and deliver a profile of FS per depth, plus LPI.
02
CPT-Based Liquefaction Screening
Cone Penetration Testing with pore pressure dissipation. Provides a continuous record of tip resistance and sleeve friction, enabling detailed soil behavior type classification and rapid identification of liquefiable layers.
Applicable standards
ASTM D1586-18 (Standard Test Method for SPT), ASTM D5778-20 (Standard Test Method for CPT), ASCE 7-22 (Minimum Design Loads, Section 11.4 – Site Class), NCEER 2001 (Youd et al., Journal of Geotechnical and Geoenvironmental Engineering)
Frequently asked questions
What is the cost range for a soil liquefaction analysis in Houston?
A standard liquefaction study for a residential lot in Houston typically ranges between US$2,890 and US$4,570. This includes SPT borings, lab testing, and a report with FS curves and LPI values. Larger commercial sites with multiple CPT soundings can exceed this range.
What is the difference between CRR and CSR in liquefaction analysis?
CRR (Cyclic Resistance Ratio) is the soil's ability to resist liquefaction, determined from corrected SPT or CPT data using the NCEER 2001 chart. CSR (Cyclic Stress Ratio) is the demand imposed by the design earthquake, calculated from peak ground acceleration, stress reduction factor, and overburden stress. Liquefaction occurs when CSR exceeds CRR.
How deep is the liquefaction analysis typically performed in Houston?
We evaluate the top 20 meters, because Houston's loose sand deposits rarely extend deeper. The USGS seismic hazard model indicates that the most critical layers are within the upper 12–15 m, where groundwater is shallowest and confining stress is lowest.
Location and service area
We serve projects across Houston and its metropolitan area.
