Houston sits on nearly 50 feet of Quaternary alluvial deposits over the Beaumont Formation, a clay profile notorious for high plasticity and low permeability. With an average annual rainfall of 49 inches and a flat coastal plain, the water table often sits within 5 feet of the surface. For a plate load test (PLT) to yield reliable results here, we must account for the phreatic level and the soil's stress history. We perform the test at foundation elevation using a 30-inch diameter plate, following ASTM D1194-22. The load is applied in increments of 25% of the estimated ultimate bearing capacity, with settlements monitored to 0.001 inch. This method directly measures the modulus of subgrade reaction (k-value), which is critical for slab-on-grade design on Houston's expansive clays. When the test profile includes stiff desiccated crust over softer clay, we often complement it with a constitutive model from triaxial testing to refine settlement predictions.
A plate load test on Beaumont Clay yields the actual modulus of subgrade reaction, but only if you let primary consolidation run its course.
Methodology and scope
ASTM D1194-22 is the governing standard for the plate load test (PLT). In Houston, where the Beaumont Clay can have a plasticity index exceeding 50, the standard's requirement for a rigid steel plate with a diameter at least 30 inches is non-negotiable. The test must be conducted at the actual foundation depth, and the loading sequence must simulate the structural load increments. We use a hydraulic jack reaction system anchored by a weighted platform or helical anchors. The test is performed in accordance with ASTM D1194-22, with load maintained for 6 to 8 hours per increment to allow primary consolidation settlement to occur. We record deflection at three points on the plate edge using dial gauges with 0.001-inch resolution. The resulting load-settlement curve gives the bearing capacity at 5% of plate diameter settlement and the modulus of subgrade reaction for pavement and slab design. For projects on deep soft clay, the plate load test (PLT) alone is insufficient. We couple it with consolidation testing to model long-term settlement under the entire foundation footprint.

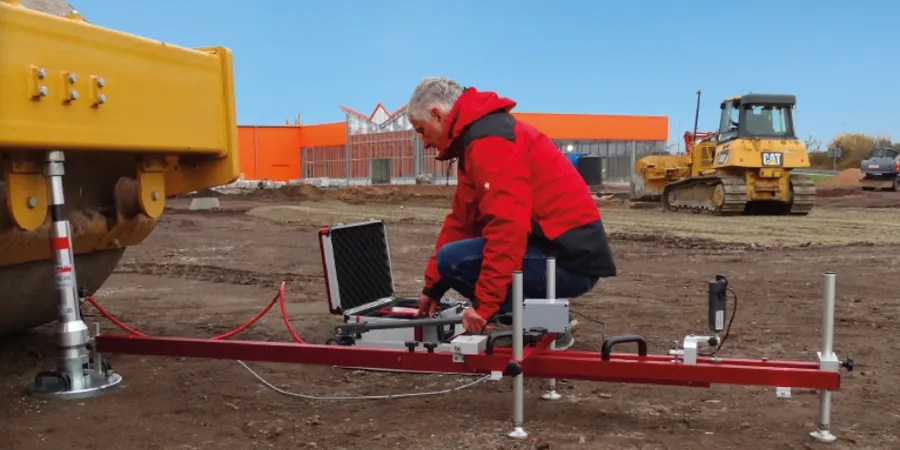

Technical reference image — Houston
Local considerations
The biggest risk with a plate load test (PLT) in Houston is misinterpreting the results due to scale effect. The test only stresses the soil to a depth of about 1.5 times the plate diameter—roughly 3.75 feet. If a softer clay layer exists below that depth, the plate load test (PLT) will overestimate the true bearing capacity. We mitigate this by performing a soil boring with SPT at the same location before the test. The SPT log reveals soil stratigraphy and identifies any weak layers below the test influence zone. Another risk is water table fluctuation during the rainy season; we pump the test pit dry and maintain a constant head during loading. Failure to do so can result in a k-value that is too high by a factor of two.
How deep does a plate load test (PLT) actually investigate the soil in Houston?
The test stresses the soil to a depth of approximately 1.5 times the plate diameter. For a 30-inch plate, that is about 3.75 feet. If a softer layer exists below that depth, the PLT alone will overestimate bearing capacity. We always pair it with a soil boring to verify stratigraphy.
What is the typical cost range for a plate load test (PLT) in Houston?
The cost for a plate load test (PLT) in Houston typically ranges between US$890 and US$1,260. This includes mobilization, plate setup, loading, and a report with load-settlement curves and k-value. Price varies with site access and number of test locations.
Can I use a plate load test (PLT) to verify compaction of fill on my Houston project?
Yes. A PLT on the compacted fill surface directly measures the modulus of subgrade reaction and bearing capacity at that elevation. It is a common acceptance test for structural fill under slabs and footings. The test must be performed after the fill has reached the required density per ASTM D698 or D1557.
