Micropile design in Houston must follow ASCE 7 and the 2021 IBC due to the city's deep compressible clays and high water table. These high-capacity piles transfer loads to deeper bearing strata, which is critical for projects near the Houston Ship Channel or in the Katy Prairie areas. Before finalizing a micropile layout, our team reviews soil data from nearby boreholes. This step often requires a complementary study of soil classification to identify clay plasticity and sand density. We also cross-check the design against local settlement records from the Texas Department of Transportation. Micropile design in Houston is not a one-size-fits-all solution.
In Beaumont clay, micropiles must resist both vertical loads and lateral forces from soil movement.
Methodology and scope
Houston's urban growth since the 1950s has pushed construction onto old floodplains and marshlands. These areas contain Beaumont clay and Lissie formations, which shrink and swell with moisture. Micropile design in Houston must account for negative skin friction in these clays. Our procedure includes:
Review of historical boring logs from adjacent sites
Selection of pile diameter and steel casing thickness based on corrosion potential
Grout mix design with a target compressive strength of 28 MPa at 28 days
Verification of bond zone capacity using Osterberg cell tests when required
For projects in the Energy Corridor, we also integrate vane shear testing to measure undrained shear strength in soft clay. This data refines the skin friction values used in the micropile design. It is a practical step that reduces risk. We also rely on ground penetrating radar to locate underground utilities before drilling.

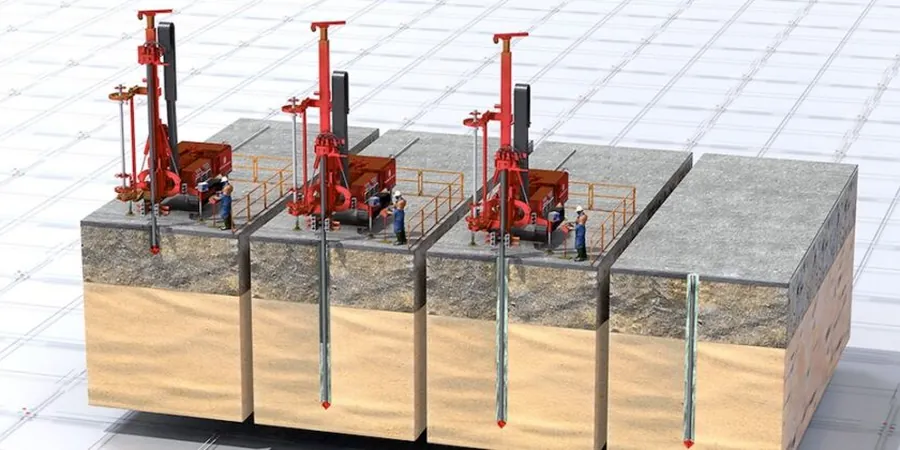

Technical reference image — Houston
Local considerations
We use a hydraulic rotary drill rig with a 3000 psi pump for micropile installation in Houston. The rig is mounted on tracked carriers to navigate wet sites near Buffalo Bayou. One key risk is drilling through buried debris from demolished structures. Our crews pre-clear each location with a potholing tool. Another risk is grout loss into fissured clay. We address this by adding bentonite to the grout mix. If the water table is high, we use temporary casing to prevent borehole collapse. The design team reviews each log before the pile is grouted.
What soil conditions in Houston affect micropile design?
The Beaumont clay formation has high plasticity and can shrink or swell with moisture changes. This creates negative skin friction on the pile shaft. Sand lenses in the Lissie formation can cause loss of grout during drilling. Both conditions are addressed by adjusting the bond zone length and using temporary casing.
How much does micropile design cost in Houston?
The design cost ranges from US$1.420 to US$4.330 depending on the number of pile types and load tests. This includes soil data review, structural calculations, and shop drawings. Large projects with multiple test piles fall at the higher end of the range.
What standards govern micropile design in Houston?
Micropile design in Houston follows the 2021 IBC and ASCE 7-22 for loads. The FHWA manual HI-97-013 provides the design methodology. ASTM D1586 is used for soil sampling, and ASTM D3966 governs load testing. All designs must be stamped by a Texas licensed professional engineer.
How long does the micropile design process take?
A typical design package for a 20-pile foundation takes 3 to 5 business days after soil data is received. If load tests are required, the schedule extends by 7 to 10 days for test setup and analysis. Rush service is available for an additional fee.
Location and service area
We serve projects across Houston and its metropolitan area.
