Houston's growth as a major port and energy hub didn't happen by accident, but the city's geology posed real challenges from the start. The flat coastal plain, with thick deposits of clay and silt from ancient river systems, means shallow soils rarely provide the bearing capacity needed for heavy structures. That's why pile foundation design became essential here early on. From the first skyscrapers downtown to the petrochemical plants along the Ship Channel, engineers realized that transferring loads to deeper, more competent strata was the only reliable path. Our lab has worked on projects across Harris County, and we've seen how critical it is to match the foundation system to the actual subsurface conditions. Before we even start calculations, we run a resistivity survey to map soil layers and groundwater across the site. This initial step helps us identify where the bearing stratum sits and how variable the soil profile can be, even within a single block.
In Houston's clay-dominated soils, pile foundation design must account for long-term consolidation and negative skin friction to avoid excessive settlement.
Methodology and scope
For pile foundation design in Houston, we typically deploy a hydraulic drill rig mounted on a tracked carrier. The rig drives sampling tools to depths of 30 to 50 meters, depending on the project scope. We use both Standard Penetration Tests (SPT) per ASTM D1586 and undisturbed Shelby tube sampling to capture the soil's strength and compressibility. The rig's automatic hammer system ensures consistent energy delivery, which is crucial for reliable N-values.
SPT blow counts at 1.5-meter intervals to assess relative density and strength.
Undisturbed samples for triaxial and consolidation tests in the lab.
Piezometer installation to monitor groundwater fluctuations over time.
We coordinate with structural engineers to define the design parameters: end-bearing resistance in the sand layers, skin friction in the clay, and group effects. The team also evaluates downdrag potential where soft clay overlies bearing strata.

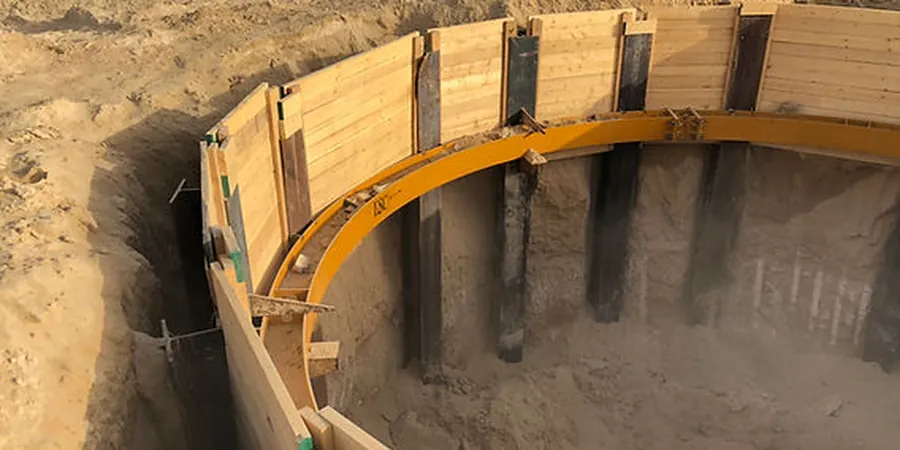

Technical reference image — Houston
Local considerations
A common mistake we see from contractors in Houston is assuming that a single pile type works across the entire site. The soil profile can shift from stiff clay to loose sand in just a few meters. Without proper pile foundation design that accounts for these variations, you risk differential settlement or even pile refusal during driving. We've seen cases where crews kept driving piles well below the design depth because they hit a resistant layer early, only to punch through into softer material below. That wastes time and money. Our approach is to review the boring logs for every pile location, group them by similar strata, and adjust the design parameters accordingly. We also flag zones where liquefaction could occur during a seismic event, which is rare here but still considered per IBC.
We drill borings to depths of 30 to 60 meters, perform SPT and undisturbed sampling, and run lab tests (triaxial, consolidation, index properties). The data feeds directly into pile capacity calculations per FHWA and ACI methods. We deliver a report with recommended pile type, length, and capacity.
02
Pile Load Test Supervision and Analysis
Our team oversees static load tests (ASTM D1143) and dynamic load tests (PDA) on test piles. We monitor settlement, load transfer, and structural integrity. Results calibrate the design parameters and confirm that the foundation meets project specifications.
Applicable standards
ASTM D1586-18 (Standard Penetration Test), ASTM D2850-15 (Unconsolidated-Undrained Triaxial), IBC 2021 Chapter 18 (Soils and Foundations), ACI 543R-12 (Design, Manufacture, and Installation of Concrete Piles)
Frequently asked questions
What soil conditions in Houston most affect pile foundation design?
The high-plasticity clay (CH) that dominates much of Houston has low permeability and high shrink-swell potential. This clay can generate significant uplift forces on piles during dry periods and reduce skin friction when wet. We also encounter dense sand and gravel layers at depth that provide good end-bearing, but their depth varies widely across the city. Our investigation always includes Atterberg limits and consolidation tests to quantify these effects.
How much does pile foundation design cost in Houston?
The cost for a complete pile foundation design study, including field investigation, lab testing, and analysis, typically ranges from US$1.820 to US$6.410. This depends on the number of borings, depth of exploration, and complexity of the soil profile. We provide a detailed quote after reviewing the project scope and site conditions.
What standards do you follow for pile foundation design in Houston?
We adhere to ASTM D1586 for SPT, ASTM D2850 for triaxial testing, and IBC 2021 Chapter 18 for foundation design. For driven piles, we also reference ACI 543R and FHWA-NHI-16-009. All lab work is performed under our ISO 17025 accreditation to ensure data quality and traceability.
Location and service area
We serve projects across Houston and its metropolitan area.
