Houston's explosive growth from the 1960s onward turned coastal prairie into a sprawling metroplex, but the underlying geology hasn't changed. The region sits on Beaumont and Lissie formations — highly plastic clays that swell when wet and shrink during droughts. Designing a road subgrade here means wrestling with a 100-ft thick clay profile that changes volume with every rain event. Early subdivisions paved without proper subgrade treatment, and the result was a patchwork of cracked streets and settled driveways. Modern road subgrade design in Houston must account for these shrink-swell cycles from day one, integrating moisture control and mechanical stabilization before the first lift of asphalt goes down.
Houston's expansive clays can lift a pavement slab by two inches in a wet spring and drop it back in a dry summer — subgrade design must anticipate both extremes.
Methodology and scope
Compare the Westheimer corridor against the Hardy Toll Road — both see heavy traffic, but their subgrade challenges differ. Westheimer's shallow clay sits atop sand lenses, requiring careful drainage design to avoid water entrapment. Near Hardy, the clays are deeper but more uniform, which simplifies compaction but raises the risk of long-term consolidation. A thorough road subgrade design in Houston addresses these variables by first determining the California Bearing Ratio (CBR) through laboratory testing, then matching it to the expected axle loads. For sites with very low CBR, the design may incorporate geoceldas to distribute stresses, or chemical treatment with lime or cement. When the water table is high, a drenaje geotecnico system becomes essential to keep the subgrade dry. And for projects requiring stiffness verification at depth, we cross-check results with corte directo tests on undisturbed samples.

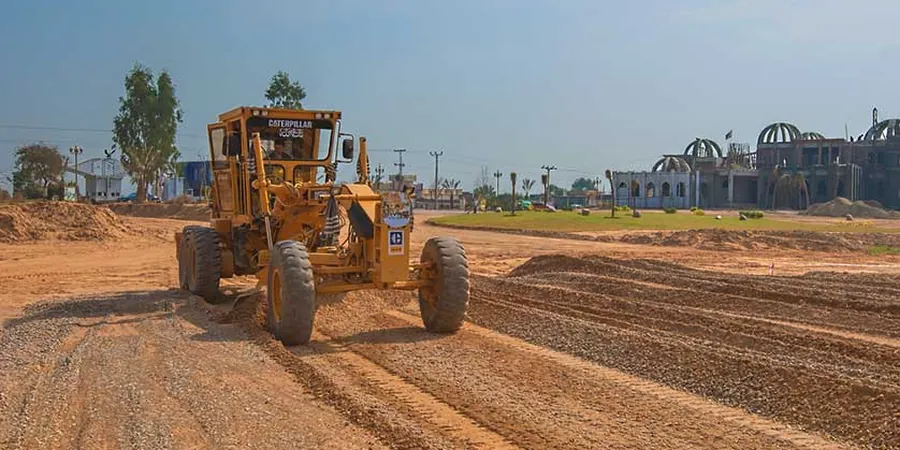

Technical reference image — Houston
Local considerations
A common mistake made by contractors new to the region is treating Houston clay like a typical granular subgrade. They compact at standard OMC, lay the base, and call it done. Three months later, the pavement edges heave, the center cracks, and the drainage inverts. The real risk isn't strength — it's volume change. A road subgrade design in Houston that skips the swell test or ignores the Thornthwaite Moisture Index will fail within the first seasonal cycle. We've seen 2-inch differential heave on a collector street that had no moisture barrier. That's a lawsuit waiting to happen. The fix is simple but non-negotiable: design for the clay's worst-case moisture state, not the lab-dry condition.
Boreholes, test pits, and Shelby tube sampling to classify Houston clays per USCS and AASHTO, measure natural moisture, and identify high-plasticity zones that require treatment.
02
CBR & Swell Testing
Laboratory CBR at field density and moisture, plus soaked swell tests per ASTM D1883. Results directly feed pavement thickness design using AASHTO 1993 or Mechanistic-Empirical methods.
03
Stabilization Design & QA/QC
Lime or cement treatment dosage recommendations, mix design verification, and field compaction control. We certify that the treated subgrade meets target CBR and swell limits before base placement.
Why is road subgrade design in Houston so different from other cities?
The Beaumont clay formation has a plasticity index that can exceed 50, meaning it absorbs water and expands significantly. Combined with a shallow water table and high annual rainfall, the subgrade is constantly fighting moisture changes. Designs that work in sandy or silty soils fail here within months.
What is the typical CBR value for untreated Houston clay?
Soaked CBR for untreated Beaumont clay ranges from 2% to 8%, depending on moisture content and compaction effort. For comparison, a good granular subgrade might yield 20% or more. That's why stabilization is almost always required for road subgrade design in Houston.
How much does a road subgrade design study cost?
A complete study including borings, lab tests, and a design report typically runs between US$1,100 and US$3,060, depending on the number of test locations, required stabilization trials, and project size.
What is the difference between CBR and k-value for subgrade design?
CBR measures the shear resistance of the subgrade under controlled conditions and is used in flexible pavement design (AASHTO 1993). The k-value (modulus of subgrade reaction) is used for rigid pavements and measures the subgrade's support per unit deflection. Both are derived from laboratory or field tests, but they are not directly interchangeable without empirical correlations.
Can lime stabilization really eliminate swelling in Houston clays?
Yes, lime treatment can reduce the plasticity index from 50+ down to under 10, and cut swell potential by 80% or more. However, the dosage must be tailored to the specific clay chemistry. We perform Eades & Grim pH tests and unconfined compressive strength trials to determine the optimal lime content for each project.
