Houston’s subtropical humidity and clay-rich soils create a unique challenge for any foundation. The coastal plain is dominated by highly plastic Beaumont clays that swell when wet and shrink during dry spells. This movement can crack a shallow footing in months. A properly engineered raft or mat foundation spreads the building load across the entire footprint, reducing differential movement. Before we design, we always run a soil classification to map the clay profile and identify any soft layers. That data drives the reinforcement layout and thickness. For Houston, we often combine the mat with deeper elements like piles to manage settlement in the compressible upper strata. The result is a stiff, unified slab that resists the seasonal shrink-swell cycles typical across the greater Houston area.
Houston’s Beaumont clay can swell up to 15% in volume. A mat foundation must be stiff enough to ride that movement without cracking.
Methodology and scope
Houston sits at just 80 feet above sea level, with a shallow water table that seasonally rises within 5 feet of the surface. This high groundwater reduces bearing capacity and increases the risk of hydrostatic uplift under a mat. We design for these conditions by incorporating a drainage layer and, where needed, a perimeter relief system. The mat thickness we specify typically ranges from 18 to 30 inches, depending on column loads and soil stiffness. Reinforcement is calculated using the actual contact pressure distribution, not a uniform assumption. We also integrate a post-tensioning option for large residential slabs. Before finalizing the mat geometry, we cross-check the site data with a plate load test to confirm the modulus of subgrade reaction. That parameter is critical for deflection control in a raft foundation. Our designs follow IBC 2021 and the local amendments enforced by Harris County.

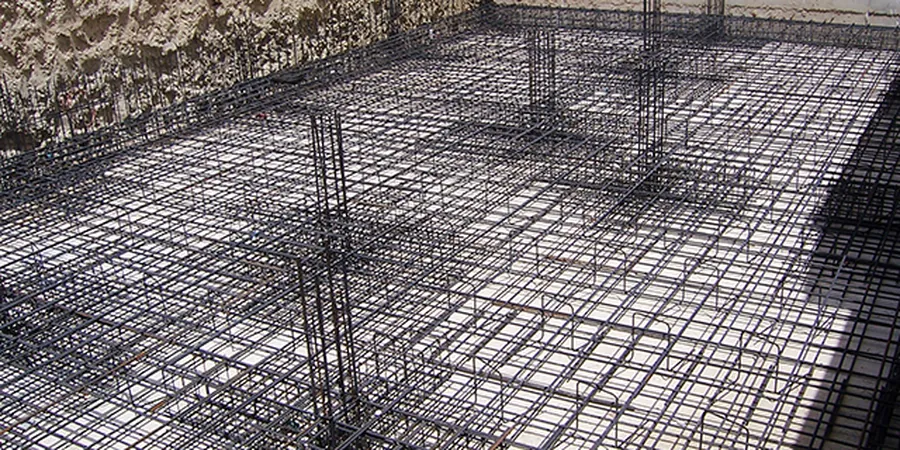

Technical reference image — Houston
Local considerations
A 10-story apartment building near the Galleria was sinking unevenly six months after occupancy. The geotechnical report had recommended a mat foundation, but the design used a uniform subgrade modulus across the entire site. The reality: one corner sat on stiff clay, the other on soft fill from an old channel alignment. We were called to retrofit. We drilled 14 test pits, ran plate load tests at each quadrant, and redesigned the mat with variable thickness and localized deep-soil improvement. The fix worked. That project taught us that a mat foundation in Houston cannot rely on a single soil parameter. You must map the variation across the slab footprint. Our process always includes a detailed spatial variability study before we set the design parameters.
Complete structural and geotechnical design of reinforced concrete raft foundations. Includes soil-structure interaction modeling, reinforcement detailing, and construction drawings. Suitable for residential, commercial, and industrial buildings.
02
Subgrade Modulus Verification
In-situ plate load testing to determine the actual modulus of subgrade reaction (k-value) at multiple points across the slab footprint. We provide a site-specific k profile for realistic deflection and moment calculations.
03
Swell and Settlement Assessment
Evaluates the potential for differential heave or settlement under the mat. We use oedometer tests and swell pressure measurements on undisturbed clay samples to predict movement and design the mat stiffness accordingly.
Applicable standards
IBC 2021 – Chapter 18 (Soils and Foundations), ASCE 7-22 – Minimum Design Loads, Section 12.13, ACI 318-19 – Building Code Requirements for Structural Concrete (Chapter 13), ASTM D1194-94 – Bearing Capacity of Soil for Static Load and Spread Footings, Post-Tensioning Institute (PTI) – Design of Post-Tensioned Slabs-on-Ground, 3rd Ed.
Frequently asked questions
What is the difference between a raft foundation and a shallow footing in Houston?
A raft foundation is a continuous slab that supports the entire structure, distributing loads over a large area. It is ideal for Houston's expansive clay because it resists differential movement. Individual footings are prone to cracking as the clay swells and shrinks seasonally. Rafts are also better for sites with variable soil stiffness or high groundwater.
How much does a raft foundation design cost in Houston?
Typical engineering fees for a raft foundation design in Houston range from US$1,160 to US$4,150, depending on building size, soil complexity, and required testing. This includes site investigation, structural analysis, and stamped drawings. Additional costs apply if extensive plate load tests or deep soil improvement are needed.
Do I need a geotechnical report before a mat foundation design?
Yes, absolutely. A geotechnical report is essential for mat design. It provides the soil profile, bearing capacity, swell potential, and groundwater data. Without it, you risk over- or under-designing the slab. We can coordinate the geotechnical investigation and the structural design as a single service.
Can a mat foundation be used on a sloping site in Houston?
Yes, but the design must account for varying soil thickness and lateral earth pressures on the downhill side. We often use a stepped mat or combine it with a retaining wall. The key is to avoid differential settlement between the high and low sides. A detailed slope stability analysis is recommended before finalizing the mat geometry.
Location and service area
We serve projects across Houston and its metropolitan area.
