Houston grew rapidly on the flat coastal plains of southeast Texas, where the Rio Grande and Brazos rivers deposited deep layers of clay and silt over millennia. The city's expansion into former swamplands and rice fields created unique challenges for earthwork contractors. The Proctor test became essential here because it determines the moisture-density relationship of these fine-grained soils, giving engineers the target compaction values needed to build stable fills, embankments, and subgrades. Without this data, fills placed in Houston's humid climate can settle unevenly or lose strength when the water table shifts. The test also helps identify how much compaction energy is required to reach the desired density, which directly affects the cost and schedule of grading operations across the metropolitan area.
Houston's high-plasticity clays often exceed optimum moisture content naturally, making the Proctor test the first step in controlling compaction quality and avoiding post-construction settlement.
Methodology and scope
ASTM D698 (Standard Proctor) and ASTM D1557 (Modified Proctor) are the governing standards for compaction testing in Houston. The Modified method applies a higher compactive effort — 56,000 ft-lbf/ft³ versus 12,400 ft-lbf/ft³ for Standard — which better simulates the heavy rollers used on major highway projects and deep fills. In Houston, where expansive clays like the Beaumont formation cover much of the city, the choice between Standard and Modified depends on the load the fill will carry. For residential pads and light commercial slabs, Standard Proctor usually suffices. For Interstate 10 embankments or petrochemical facility pads, Modified is required. The test produces a compaction curve that shows the optimum moisture content and maximum dry density, which contractors use to adjust water addition or aeration in the field. This is especially critical in Houston because the natural moisture content of local clays often exceeds the optimum, requiring drying time before compaction can begin. Before running the Proctor, a granulometry test helps classify the soil and predict its compaction behavior.

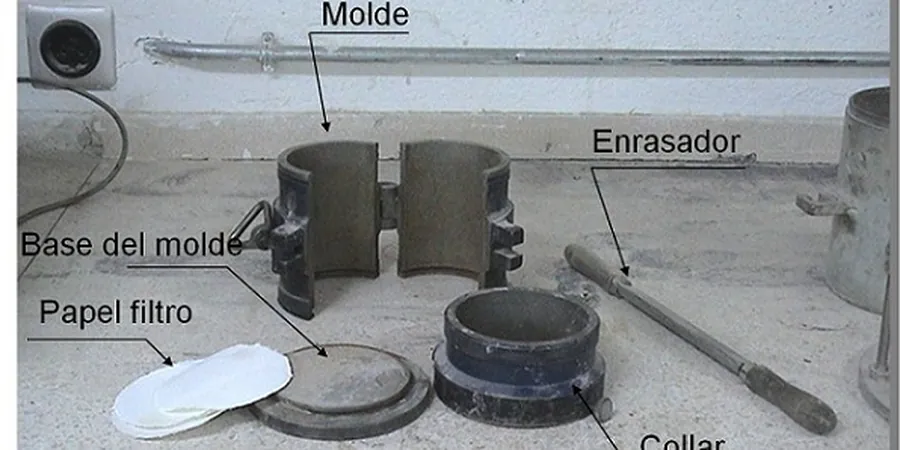

Technical reference image — Houston
Local considerations
Houston's humid subtropical climate means soils rarely dry out completely. The city receives over 50 inches of rain annually, and the water table sits just a few feet below grade in many areas. When a Proctor test indicates optimum moisture at 16% but the in-situ soil sits at 24%, contractors must aerate or mix in dry material before compaction. Skipping this step leads to low density, high void ratios, and eventually differential settlement under pavement or foundations. The risk is amplified in areas like the Katy Prairie or near the Houston Ship Channel, where soft alluvial deposits dominate. A Proctor test done on a disturbed sample that does not represent the actual moisture condition of the borrow pit can give false confidence. That is why experienced geotechnical labs in Houston always correlate the Proctor results with field density tests using nuclear gauges or sand cones.
For light to moderate compaction requirements. Used on residential fills, parking lots, and low-traffic pavements in Houston. Includes 4-point moisture-density curve.
02
Modified Proctor (ASTM D1557)
Higher compactive effort for highway embankments, heavy industrial pads, and airport runways. Required by TxDOT for most state-funded projects in Houston.
03
Field Density Correlation
We compare Proctor results with in-situ density tests using nuclear gauge or sand cone. This ensures the fill meets the specified compaction percentage in the field.
What is the difference between Standard and Modified Proctor in Houston soils?
The Modified Proctor applies about 4.5 times more compactive energy than the Standard. For Houston's high-plasticity clays, the Modified method typically produces a higher maximum dry density and a lower optimum moisture content. Standard Proctor is used for lighter fills like residential slabs, while Modified is specified for highways and heavy industrial pads where deeper compaction is needed.
How much does a Proctor test cost in Houston?
The typical range for a Standard Proctor test in Houston is between $100 and $200 per sample. Modified Proctor costs slightly more, usually $150 to $250, because it requires more blows and a longer testing cycle. Volume discounts are available for large earthwork projects with multiple samples.
How long does a Proctor test take?
A single Proctor test takes 3 to 5 business days from sample delivery to final report. The actual test procedure takes about 4 hours per point, plus drying time for each moisture content. We can expedite for critical path items with a 24-hour turnaround at an additional charge.
Do I need a Proctor test for every soil type on my Houston site?
Yes, if the borrow source or on-site soil changes significantly. Houston has multiple soil units — Beaumont clay, Lissie formation, and alluvial deposits along bayous — each with different compaction characteristics. A single Proctor curve cannot represent all layers. We recommend one test per distinct soil type encountered during earthwork, especially if visual classification or plasticity index differs.
