Houston sits on deep alluvial and fluvial deposits from the Brazos and Trinity river systems, with layers of silty clay, sand, and loam reaching depths of over 30 meters in some areas. Many of these soils, particularly the low-density loess-like silts found along the Katy Prairie and west Harris County, exhibit a metastable structure that can collapse abruptly when saturated under load. Collapsible soil evaluation in Houston is therefore essential before any site development, because conventional bearing capacity tests alone will not catch this hidden failure mode. We combine field sampling with controlled oedometer testing to quantify collapse potential, and we often recommend a complementary ensayo SPT to correlate penetration resistance with void ratio across the profile.
A soil that passes standard bearing checks may still lose up to 15% of its volume when wetted — collapsible evaluation catches this before the slab is poured.
Methodology and scope
The humid subtropical climate of Houston, with average annual rainfall exceeding 1,300 mm and frequent intense storms, creates ideal conditions for triggering collapse in metastable soils. A dry crust may appear stable for years, then fail suddenly after a single heavy rain event or a broken utility line. Our evaluation protocol follows ASTM D5333-20, measuring collapse index from undisturbed ring samples at natural moisture content and after inundation. We also perform double-oedometer tests on paired specimens to separate the effects of wetting from stress application. For projects on reclaimed farmland or former rice fields common around Richmond and Sugar Land, we integrate capacidad de carga analysis to ensure foundation designs account for both immediate and wetting-induced settlement.

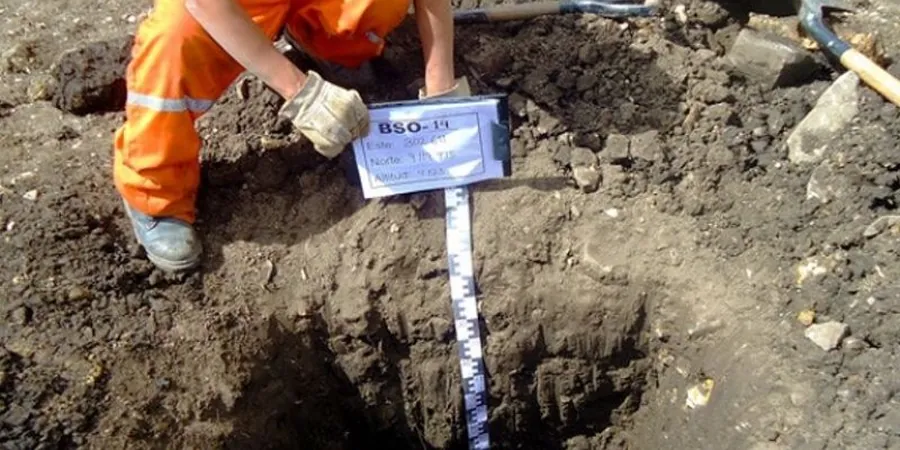

Technical reference image — Houston
Local considerations
A common mistake we see among Houston developers is assuming that a high blow count in an SPT log guarantees stable soil. In reality, a dense but dry silt can register N-values above 20 and still collapse when wet. The collapse occurs because cementing agents like clay bridges or calcium carbonate dissolve upon saturation, allowing particles to slide into a denser arrangement. Ignoring collapsible soil evaluation in Houston leads to differential settlements that crack floor slabs, tilt retaining walls, and damage underground utilities, often within the first two years of occupancy. We have documented cases where post-construction repairs cost five times the original geotechnical investigation.
Undisturbed ring samples are loaded incrementally in a fixed-ring consolidometer, then flooded at a representative stress level to measure collapse strain. Results include collapse index, time-rate curves, and post-wetting compressibility.
02
Field Infiltration & Wetting Trials
For large sites, we install test basins and monitor moisture migration with time-domain reflectometry sensors. This simulates worst-case wetting under real Houston rainfall patterns and verifies collapse thresholds.
03
Foundation Risk Assessment
We combine collapse potential data with structural loads to compute differential settlement for shallow and deep foundations. Recommendations include pre-wetting, dynamic compaction, or deep soil mixing where collapse risk is high.
What is collapsible soil and why is it a problem in Houston?
Collapsible soil is a metastable material that undergoes sudden volume reduction when wetted under load. In Houston, these soils are often low-density silts from ancient floodplains. The problem is that standard bearing capacity tests do not detect the collapse mechanism, so buildings can settle unexpectedly after heavy rain or a plumbing leak.
How is collapsible soil evaluation performed?
We take undisturbed tube samples from test pits or thin-wall Shelby tubes. These are trimmed into consolidation rings and tested in an oedometer apparatus per ASTM D5333. The sample is loaded to the expected foundation stress, then flooded. The collapse index is the strain difference between the natural and wetted conditions.
How much does collapsible soil evaluation cost in Houston?
Typical costs range between US$940 and US$2,620 per test location, depending on sampling depth, number of collapse tests, and whether additional consolidation stages are required. Larger projects with multiple test pits receive volume-adjusted pricing.
What foundation solutions work for collapsible soil?
Common mitigation methods include pre-wetting the site to induce collapse before construction, dynamic compaction to densify the soil, deep soil mixing with cement, or using deep foundations (piles or drilled shafts) that bypass the collapsible layer. The choice depends on collapse severity, building loads, and budget.
