Geomembrane specification in Houston follows ASTM D1586-18 for subsurface characterization and ASTM D2487-17 for soil classification, both critical for liner-subgrade compatibility. The city’s high water table and expansive clays demand rigorous subgrade evaluation before any geomembrane installation. Our team integrates these standards with the International Building Code (IBC) to define puncture resistance, interface friction and placement conditions. We also cross-reference the ensayo de resistencia al corte directo to verify shear strength at the liner interface. This approach ensures the geomembrane performs under Houston’s unique hydrogeologic conditions, where seasonal moisture swings can alter subgrade stiffness and drainage behavior. Each specification is tailored to site-specific data, not generic assumptions.
Without site-specific subgrade data, an HDPE liner may experience tensile stress from heaving clay. We always verify before specifying.
Methodology and scope
Houston’s rapid expansion since the 1960s has pushed development onto former prairie and marshland, creating engineered fills that vary block by block. For a geomembrane specification to hold, we first run a complete soil index suite: Atterberg limits, grain-size distribution and in-situ moisture content. These values dictate whether the subgrade needs a bedding layer or a geotextile separator. On sites with old landfills or industrial backfill, we recommend a estudio de suelos expansivos to map volumetric change potential. Without that data, an HDPE liner may experience tensile stress from heaving clay. The specification itself lists minimum thickness (usually 1.5 mm for primary liners), seam peel strength per ASTM D6392, and elongation at break per ASTM D6693. Every parameter ties back to the site’s actual soil profile.

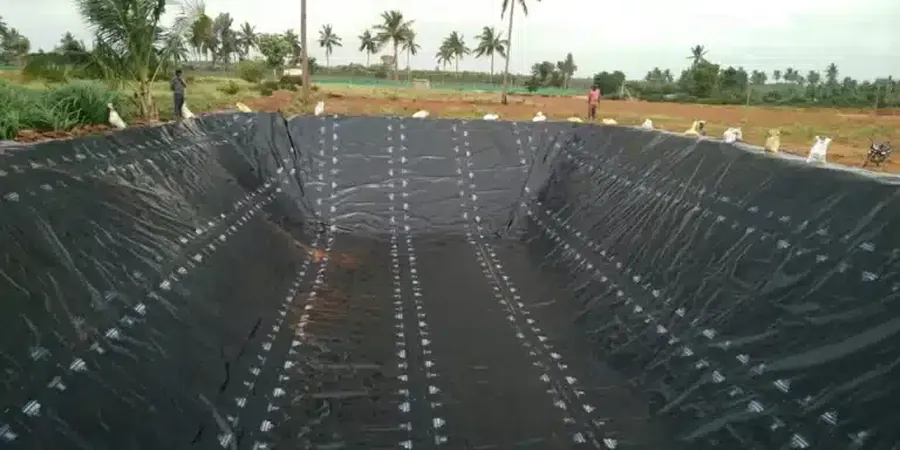

Technical reference image — Houston
Local considerations
In Houston, many sites have undocumented fill that masks soft zones or buried debris. If the geomembrane specification ignores those anomalies, the liner can rupture under construction loads. We’ve seen this happen on more than one landfill cap. The risk spikes when the water table sits within 2 m of the surface, which is common near Buffalo Bayou. Our protocol includes a pre-installation subgrade proof-roll and pocket penetrometer checks to catch weak areas early. A proper specification flags these risks and sets acceptance criteria for the subgrade before any geomembrane unrolls. That’s the difference between a liner that lasts 30 years and one that fails in the first wet season.
Full soil index testing (Atterberg, grain-size, moisture) plus CBR and direct shear at the liner interface. We deliver a data sheet that defines required subgrade CBR, friction angle and compaction targets before the geomembrane is ordered.
02
Liner Specification Compliance Report
A written document that cross-references site soils to ASTM D6392, D6693 and GRI-GM13. It includes minimum thickness, seam strength targets and puncture resistance values matched to the project’s hydraulic head and loading conditions.
Applicable standards
ASTM D1586-18 (Standard Penetration Test), ASTM D2487-17 (Soil Classification), ASTM D6392 (Seam Strength for Geomembranes), ASTM D5321 (Direct Shear for Geosynthetics), IBC 2021 (International Building Code, Section 1804)
Frequently asked questions
What soil tests are needed before writing a geomembrane specification for a Houston site?
At a minimum we run Atterberg limits (ASTM D4318), grain-size distribution (ASTM D6913), in-situ moisture content and a CBR test (ASTM D1883). For sites with known expansive clays, we add a free-swell test and a direct shear interface test (ASTM D5321) to set the friction angle for stability calculations.
How does Houston’s groundwater affect geomembrane liner design?
High groundwater (often within 1.5 to 2.5 m of the surface) increases uplift forces on the liner and requires a ballast layer or anchor trench. The specification must include a subgrade drainage layer if the water table is within 1 m of the liner invert. We also check that the subgrade permeability is below 1x10⁻⁵ cm/s to avoid excess hydrostatic pressure.
What is the typical thickness for an HDPE geomembrane in a Houston landfill application?
For primary liners in municipal solid waste landfills, the standard is 1.5 mm (60 mil) per GRI-GM13. Secondary liners or pond liners may use 1.0 mm (40 mil) depending on the hydraulic head and regulatory requirement. We always confirm thickness based on the site’s specific loading and puncture risk.
How much does a geomembrane specification service cost in Houston?
The cost for a complete specification report including subgrade characterization typically ranges between US$700 and US$1.800, depending on the number of test pits, laboratory tests and the complexity of the site's soil profile. This does not include the geomembrane material or installation.
Location and service area
We serve projects across Houston and its metropolitan area.
