The International Building Code (IBC) and ASCE 7 impose strict requirements on ground improvement in regions with soft compressible soils, conditions that define much of Houston's coastal plain. Jet grouting design here must account for the interbedded layers of stiff Beaumont clay and loose sands that alternate unpredictably beneath the city. For deep excavations or foundation support, a properly designed jet grout system creates a cemented soil column with controlled geometry and strength. Our approach integrates site-specific soil data from cone penetration tests to calibrate injection parameters before mobilization, ensuring each column meets the target unconfined compressive strength while minimizing waste of cement and energy.
Jet grouting design in Houston demands a parametric study that correlates nozzle pressure, rotation speed, and lift rate with target column diameter before any production work begins.
Methodology and scope
Houston's high water table and swelling clay behavior often disrupt conventional grouting programs, so jet grouting design here emphasizes controlled erosion and real-time monitoring of return fluid density. We design single-fluid and double-fluid systems depending on soil gradation: single-fluid for cohesive soils where the clay provides natural confinement, and double-fluid for loose sands where higher kinetic energy is needed to mix cement effectively. Every design package includes a parametric study correlating nozzle pressure, rotation speed, and lift rate with the target column diameter. A pre-production test column is always executed and cored to verify strength and continuity before full-scale work, with results cross-checked against the laboratory classification of soils from the same borehole.

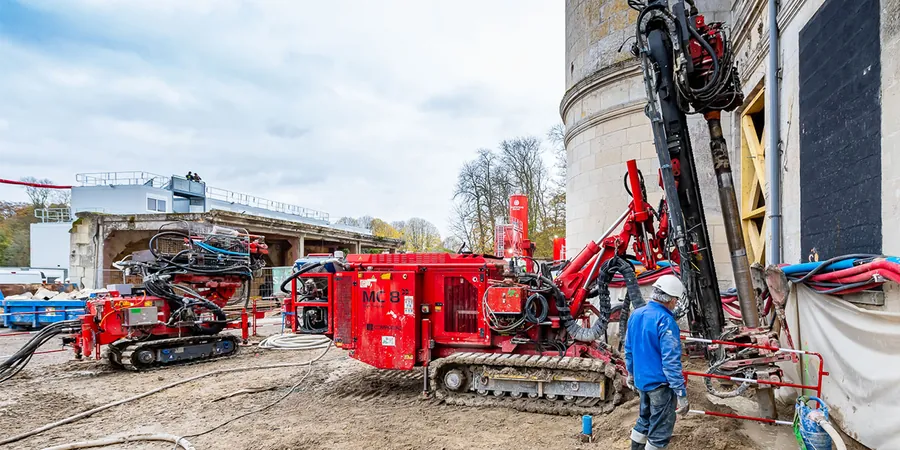

Technical reference image — Houston
Local considerations
Houston's subtropical climate produces prolonged wet seasons that saturate the upper soil profile, reducing the effective confinement needed for jet grouting in shallow zones. When groundwater rises within 1.5 meters of the surface, the return grout can wash out prematurely, leaving incomplete columns. Additionally, the expansive clay layers in the Beaumont formation can cause heave during injection if the mix design is not adjusted for plasticity. Our jet grouting design incorporates a two-stage approach: a low-pressure pre-flush to stabilize the borehole wall, followed by the high-pressure cutting phase, a sequence that significantly reduces the risk of ground loss in these conditions.
Laboratory testing of soil samples from the project site to determine optimal water/cement ratio, additive requirements, and expected UCS based on local clay and sand gradations.
02
Hydraulic Parameter Calibration
Field trials with real-time monitoring of injection pressure, flow rate, and return density to define the nozzle configuration and lift speed for each distinct soil layer encountered in Houston.
03
Structural Design of Treated Ground
Calculation of column arrangement, overlap pattern, and depth to achieve the required bearing capacity or permeability reduction, including settlement analysis under working loads per ASCE 7.
04
Construction Quality Assurance
On-site supervision during grouting, including coring and UCS testing of test columns, plus verification of column continuity using cross-hole sonic logging when required.
Applicable standards
ASCE 7-22 (Minimum Design Loads and Risk Category), ASTM D5092-21 (Standard Practice for Design and Installation of Ground Water Monitoring Wells – relevant to grout mix control), IBC 2021, Chapter 18 (Soils and Foundations)
Frequently asked questions
What is the typical cost range for jet grouting design in Houston?
The design fee for a typical Houston project ranges between US$1,460 and US$6,040, depending on the number of test columns, soil variability, and required documentation. This covers the parametric study, field calibration, and the final design report.
How does Houston's clay soil affect jet grouting parameters?
The Beaumont clay's high plasticity and low permeability require a lower water/cement ratio (typically 0.8:1) and slower lift rates to prevent premature washout. Pre-flushing the borehole with a low-pressure water jet helps avoid clogging before the main cutting phase.
What is the difference between single-fluid and double-fluid jet grouting?
Single-fluid uses a single grout jet for cutting and filling, suited for cohesive soils. Double-fluid adds a compressed air jet around the grout nozzle, increasing cutting energy for loose sands and allowing larger column diameters (up to 2.0 m) in Houston's alluvial deposits.
Do you provide design for temporary or permanent ground improvement?
Both. For temporary excavations, we design jet grout columns as a cut-off wall to control groundwater. For permanent foundation support, the design includes long-term creep and durability checks using ASTM C39 cores from test columns, with a minimum factor of safety of 2.5.
Location and service area
We serve projects across Houston and its metropolitan area.
