Houston sits on the Gulf Coastal Plain where thick deposits of Beaumont clay and alluvial sands create one of the most challenging subsurface profiles in the United States. The high plasticity index of these clairs combined with seasonal moisture swings produces volumetric changes that make driven pile design a necessity for any medium-to-large structure. Unlike shallow foundations that would suffer differential movement, driven piles transfer loads through the active zone into deeper bearing strata, typically the stiff to very stiff clays or dense sands found between 20 and 50 meters below grade. Before specifying pile type or length, we conduct a site-specific subsurface investigation using ensayo SPT to obtain N-values at 1.5-meter intervals, which directly feed into the shaft resistance and end-bearing calculations per IBC Chapter 18.
In Beaumont clay, a driven pile gains 70% of its capacity from shaft friction in the first 15 meters, not from end bearing.
Methodology and scope
The equipment we deploy for driven pile design in Houston typically includes a diesel or hydraulic hammer mounted on a crawler crane, capable of delivering 30 to 100 kJ per blow. Soil conditions dictate whether we recommend precast concrete, steel H-piles, or closed-end pipe piles — each with distinct advantages in corrosion resistance and drivability. The analysis follows the static formula method calibrated with local PDA (Pile Driving Analyzer) data from nearby projects, and we cross-check capacity using wave equation analysis (WEAP). For sites where the bearing stratum is deep or where lateral loads from hurricane winds govern, we integrate cimentaciones sismicas provisions from ASCE 7 to ensure the pile group can resist overturning. We also evaluate group efficiency and settlement using elastic continuum theory, particularly when piles are spaced closer than three diameters. The entire procedure is documented in a report that includes driving criteria, refusal criteria, and estimated toe elevations.

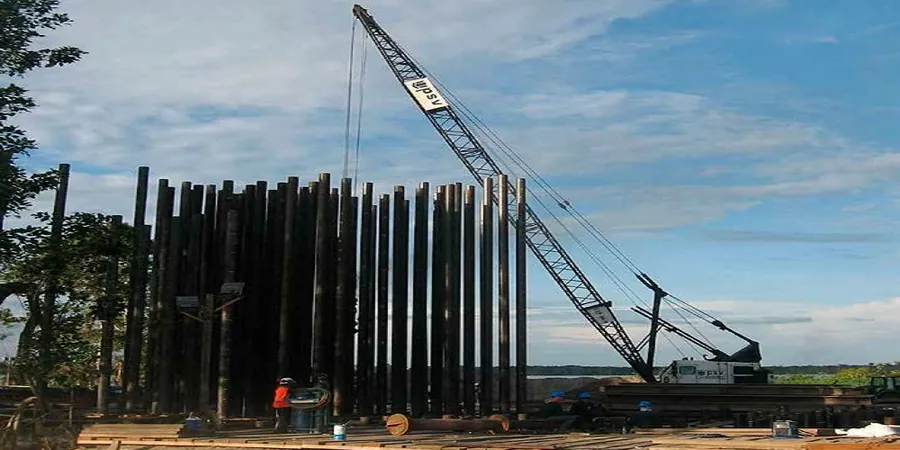

Technical reference image — Houston
Local considerations
One of the principal risks in driven pile design across Houston is underestimating the effect of overconsolidated clay layers that cause pile refusal before reaching the target depth. The Texas Gulf Coast has a complex stress history from previous desiccation and erosion, which creates hard crusts that can damage the pile or the hammer if not accounted for in the driveability study. Additionally, the presence of shallow groundwater — often within 3 meters of the surface — can reduce side friction in the upper portion of the pile during installation. We address these issues by performing a pre-construction capacidad de carga analysis using both empirical and analytical methods, and by requiring a test pile program for projects with more than 50 production piles. The test pile is instrumented with strain gauges and accelerometers to verify the design assumptions under actual driving conditions, reducing the probability of under-design or over-design by at least 30%.
We perform static capacity calculations using the alpha and beta methods for clay and sand respectively, calibrated with local PDA data. Wave equation analysis (WEAP) simulates the hammer-pile-soil system to predict driving stresses and refusal criteria, ensuring the selected hammer can install the pile without exceeding material limits.
02
Test Pile Program and PDA Monitoring
For projects with more than 50 piles, we design and supervise a test pile program that includes dynamic load testing with a Pile Driving Analyzer. This provides real-time measurements of force, velocity, and transferred energy, allowing us to adjust the driving criteria and validate or modify the design assumptions before production begins.
03
Group Analysis and Settlement Evaluation
When piles are arranged in groups, the interaction between adjacent piles reduces the group capacity and increases settlement. We analyze group efficiency using the Converse-Labarre formula and estimate settlement using elastic continuum methods or finite element modeling, considering the layered stratigraphy typical of Houston.
Applicable standards
IBC (International Building Code) 2018 — Chapter 18: Soils and Foundations, ASTM D1586-18: Standard Test Method for Standard Penetration Test (SPT), ASTM D3966-18: Standard Test Methods for Deep Foundations Under Lateral Load, ACI 543R-12: Guide to Design, Manufacture, and Installation of Concrete Piles
Frequently asked questions
How deep do driven piles typically go in Houston?
In most of Houston, driven piles reach depths between 25 and 45 meters to penetrate the Beaumont clay and bear on the underlying dense sand or stiff clay layers. The exact depth depends on the structural load and the N-values obtained during the SPT investigation.
What is the difference between driven piles and drilled shafts for Houston soils?
Driven piles are prefabricated and hammered into the ground, displacing the soil, while drilled shafts are cast-in-place after excavation. Driven piles are preferred in Houston when the bearing stratum is deep or when there is a risk of caving in the borehole due to the high plasticity clays. Drilled shafts require slurry support in these conditions.
How much does a driven pile design study cost in Houston?
A typical driven pile design study including SPT borings, laboratory testing, static analysis, and a test pile program ranges between US$1,320 and US$3,590 for a standard commercial project. The final cost depends on the number of borings, the depth of investigation, and the number of test piles required.
What causes pile refusal in Houston clay?
Pile refusal occurs when the soil resistance exceeds the hammer's capacity to advance the pile. In Houston, the primary cause is the presence of desiccated crusts or overconsolidated clay layers that have high undrained shear strength. Pre-drilling or using a larger hammer can overcome this, but the driveability study must account for these layers.
Do I need a test pile program for a small warehouse project?
For projects with fewer than 50 piles, a test pile program is not mandatory under IBC, but it is strongly recommended if the site has variable subsurface conditions. The cost of the test pile is offset by the confidence it provides in the design capacity, often allowing a reduction in the number of piles or a lower safety factor.
